Big HDPE Automatic Plastic Water Tank Drum Blow Molding/Moulding Machine

Product Description

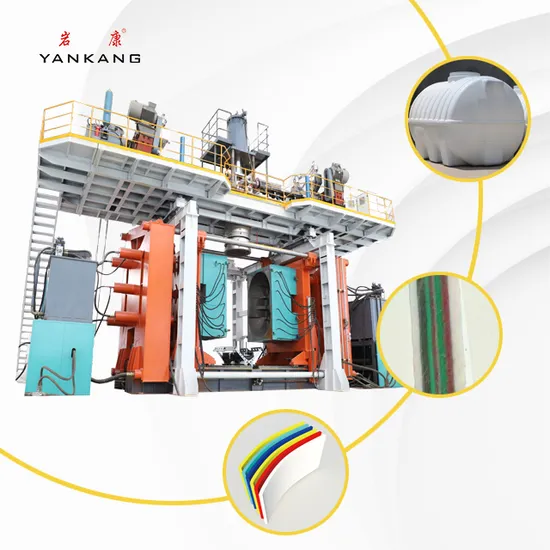

HDPE 5000L Water Tank Blow Molding Machine

Technical Parameter of 5000L Water Tank Blow Molding Machine 5000L water tank blow molding machine can use 1000L, 1500L, 2000L, 3000L, and 5000L blow molds.
Can be used for production:1000L tank 10-12 PC/H, 1500L tank 9-12 PC/H, 2000L tank 8-9 PC/H, 3000L tank 5-6 PC/H and 5000L tank 3-4 PC/H.
For more production details:

Capacity	Product	Unit	Weight	Thickness
1000L Tank	10-12	PC/H	16-20KG	3-3.5mm
1500L Tank	9-11	PC/H	20-30KG	3-4mm
2000L Tank	8-9	PC/H	30-40KG	4-5mm
3000L Tank	5-6	PC/H	50-60KG	5-6mm
5000L Tank	3-4	PC/H	70-85KG	6-8mm

Technical data for YK 5000L series
In the table below, the data of the blow molding machine of YK 5000L-2 layers, YK 5000L-3 layers, and YK 5000L-4 layers are listed.
layers are listed.

Technical Data for YK 5000L Series
Model No.		YK 5000L-2	YK 5000L-3	YK 5000L-4
	Specifications	3 layers	3 layers	4 layers
Extruders	Screw Diameter	∮125/125	∮110*3	∮100*4
	Motor	132/132kw	110*3kw	75*4kw
	Plasticizing Capacity	700kg/h	750kg/h	800kg/h
	L/D	35/1	32/1	32/1
	Max Screw Speed	50RPM	50RPM	50RPM
Die Head	Accumulator Capacity	180L	180L	190L
	Heating Load	118kw	125kw	134kw
	Max. Parison Weight	150kg	150kg	160kg
Clamping Unit	Clamping Platen Size	2400*2600mm	2400*2600mm	2400*2600mm
	Max Mould Size	2350*2800mm	2350*2800mm	2350*2800mm
	Clamping Force	3500 KN	3500 KN	3500 KN
	Mould Thickness	1550-2200mm	1550-2200mm	1550-2200mm
Hydraulic System	Hydraulic Drive Motor (Main)	80kw	80kw	80kw
	Hydraulic Drive Motor (Parison Control)	11kw	11kw	11kw
	Oil Tank Capacity	1500L*2	1500L*2	1500L*2
Machine Weight		120 Ton	150 Ton	180 Ton
Dimension	L x W x H	15m*13m*8.5m	15m*13m*8.5m	15m*13m*8.5m
Total Power		580kw	660kw	666kw
Average Power Consumption		298kw	332kw	385kw

1 Machining Workshop
* Yankang company has more than 20 sets of productionand R&D equipment, including FMS flexible machining centers, super high-precision gantry machining centers, vertical andhorizontal machining centers, CNC lathes and program-controlled laser automatic gas cutting machines.
* Not only can the processing accuracy of parts be controlled within 0.8 microns, but also 100% independent processing and production of core components can beensured, realizing a high degree of specialization of blow molding machines.
2 Blow Molding Mould
The Yankang company has a professional mold desdign and production team, logo, pattern and shape can be customozed according to customer requirements. Including vertical and horizontal tank molds of various capacities, various types of plastic pallet molds, drum molds of different sizes, IBC tank molds, kayak molds, hospital bed board molds and so on.
3 Teachnical Team
As a star company specialized in the manufacture of blow molding machines, YANKANG always puts technology research and development in the first place. The company has an independent research and development team, including advanced blow molding enginneers, professional blow molding design engineers, blow molding technicians. They address complex challenges in blow molding, and provide specialized solutions to customers.
Professional business team, excellent professional skills, and good English communication skills ensure that each customer is well served.
4 Quality Management Certified
* The YANKANG company has its own professional R&D base, and its professional and technical talents far exceed the domestic average in terms of quantity and quality, and individual and team capabilities are outstanding. With 28 national patents, it has unparalleled advantages in technology development and product replacement.
* The company has 100% independent research and development innovation core technologies and gained many advanced technological achievements. Has passed the ISO9001 international standard quality management system certification, SGS international third-party certification, CE certification. And won many domestic honors and awards.
5 Rich Export Experience
* Well-known brands with 20+ years of experience in the production of blow molding machines.
* You can find YANKANG plastic blow molding machinery in more than 60 countries and regions. Such as Saudi Arabia, UAE, Turkey, Jordon, India, Sri Lanka, Iraq, Iran, Indonesia, South Africa, Ethiopia, Kenya, Tanzania, Uganda, Ghana, Sudan, Mexico, Argentina, etc.
* The world's first 20000Litre machine from Yankang is in operation in Dubai. The first eight-layers blow molding machine also come from us and is running in Algeria.
SERVICE
Special Design
Qingdao Yankang Plastic Machinery Co., Ltd. is the largest professional blow molding machine integration enterprise in China, including product research and development, production, sales, and after-sales service. It is the pioneer and leader of the large blow molding machine. The company has its own professional research and development base.
The core technology is 100% independent R&d innovation. According to the needs of customers and the situation of the site, we can use the private customized model to create suitable products for customers.
Customized products: various blow molding machines including water tanks, IBC, road barriers, pallets, etc, and blow molds with different capacities.
After-sales Service
TRAINING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory during the periods of installing & adjusting;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines(free of charge) in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in the buyer's factory. And the Buyer should also pay for the air ticket for the engineer.
GUARANTEE
The guarantee time is one year after the machines normally work in the Buyer's factory if only the problem is caused due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you on how to solve the problems.

Sales Network
Now, Qingdao Yankang Plastic Machinery Co., Ltd. has successfully occupied the world's major markets. With excellent quality assurance and perfect after-sales service, it has won high praise from customers at home and abroad. The company's products have spread to 60+ countries and regions. These include Southeast Asia, the Middle East, Europe, the Americas, Australia, Africa, and so on. It has become the well-deserved "leader" in the blow molding machine industry in China.
FAQ
Q1: What is the warranty of the machine?
A1: The whole machine's warranty period is 12 months and key parts will be dependent.

Q2: Are you an integrated supplier for extrusion molding machines, mold, and auxiliary?
A2: Yes, we can provide the complete solution line to customers according to the customer's requirements.
Q3: How about quality control in your factory?
A3: Yankang has the SOP (Standard Operation Procedure) and all the production steps must follow up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully before shipment.
.
Q4: Will you offer the pre-sales service?
A4: Yes, we have an experienced pre-sales team to support customers not only including machine, mold, and auxiliary selection but also water .electrical, machine layout in the factory, etc.
Q5: What about the after-service? Will you send your engineer to my country to help commission and install the machine?
A5: Surely, we have many experience technical engineers for oversea service, they would help you install machines and support training to workers also. Currently, we provide visits online by video call.
Q6: What is the delivery time of the machine?
A6: Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery time of a standard machine could be within 2-3 months.
Q7: Mold trial will be available in the Yankang factory?
A7: Yes, the Customer can send the mold to the Yankang factory and test it.
Q8 . Do you provide any spare parts with the machine?
A8: Yes, Yankang will provide one set of standard spare parts to customers.

---
