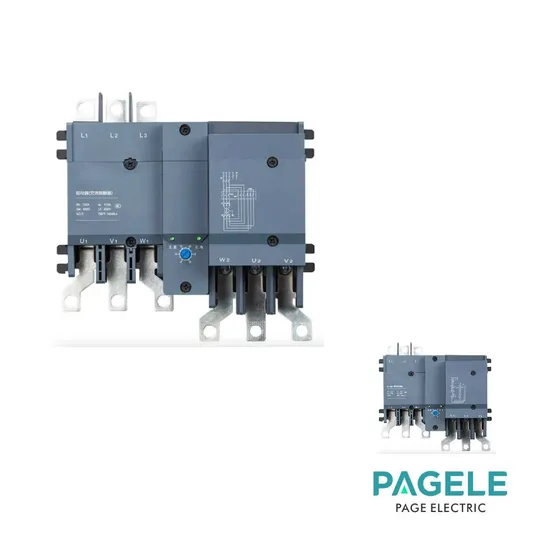

Three Phases Start Delta Moter Starter (Contactor installed already)

Product Description

Three phases Start Delta MOTER STARTER
Introduction The KS series smart contactor is a new solution product launched using a integrated technology to meet the demands of voltage reduced motor starter.
Product Features
1. Smaller size and space saving
2. Less wiring and cost saving
3. Intelligent star delta conversion, no need extra electrical interlock and more safer
4. Optimize the starting process of the motor and improve its service life.
Product Specs.

ltem		Unit	KS Series
Rated working current le(AC-3)		A	18	25	32	40	50	65	75	85	95	100	110	120	160	185	225	265
Rated working voltage Ue		V	380V/400V
Rated insulation voltage U		V	690					800						1000
Poles		P	3
Electrical life		times	60
Mechanical life		times	600
Manual(M)type mechanical life		times	10000
Motor power(AC-3)		KW	11	18.5	22	30	37	45		55		75	90	110	132	160	185	235
Applicable fuse		A	20	32		63	80	100				125		160	200	250	300	355
Terminal wiring capacity		mm²	16					35		50				75			150
Coil data	Control voltage (Us)	V	220V/230V
	Close voltage	%Us	80%-110%
	Release voltage	%Us	20%~75%
	Coil dose power	VA	230
	Holding power	VA	19					32						92

Function	Basic type(auto type)	M Emergency manual type	Z Intelligent type
Star to delta conversion
Double speed control		0	O
Reversible control		0	O
Main-delta separate		0	O
Emergency type(Manual)	0		0
Short circuit linkage	0	0
Overdoad protection	0	O
Motor stall protection	0	O
Phase lost protection	0	0
Three phase unbalance	O	0
Over/under voltage protection	0	0
Fault display	o	0
Fault alarm	0	0
Fault record	o	0
Programmble data	0	0
Status display	0	0
Fire-linkage	O	o
Communication	0	O
Leakage protection	0	0
Lifecycle management	0	O

Note:O without, optional,available
Wiring Instruction

Product Application
New generation with intelligent controller able to have multifunction protection, but no short circuit protection, need to use additional circuit breaker for short circuit protection.

---
