HDPE Milk Bottle/LDPE Agricultural Film/PP Woven Big Bag/PE Regrind Plastic Recycling Washing Line

Product Description

HDPE Milk Bottle/LDPE Agricultural Film/PP Woven Big Bag/PE Regrind Plastic Recycling Washing Line
Product Description
The HDPE recycling line is used to processing HDPE materials, recycled HDPE scraps can produce HDPE pellets and kinds of HDPE products.HDPE is mainly for producing kinds of package materials, such as HDPE bottles, HDPE barrels. For big size HDPE materials recycling, shredder is necessary before crusher, and for normal size HDPE materials recycling, HDPE can be crushed directly.Different application of HDPE materials, different contaminant, different treating process will be designed according to the raw materials.The HDPE recycling line, also suitable for the similar size PP materials recycling.

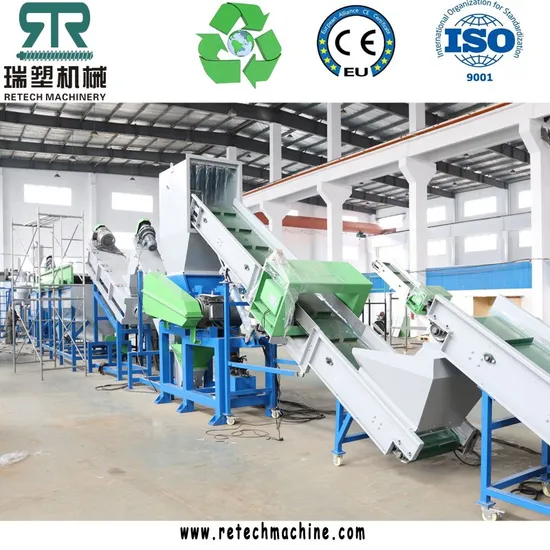

Detailed Photos
Product Parameters

Type		RS500	RS1000	RS2000	RS3000
Capacity(kg/h)		500	1000	2000	3000
Energy consumption(KWH)		119	165	209	294
Installation power(KWH)		183	254	322	452
Dimension: L*W*H(m)		Depends on factory layout	Depends on factory layout	Depends on factory layout	Depends on factory layout
Chain conveyor	chain plate width(MM)	800	1000	1400	1600
	Drive motor (KW)	2.2	3	4	5.5
Shredder	Grind chamber(mm)	840*1570	1120*1570	1400*1570	1960*1570
	Motor power(KW)	37	55	75	55*2
Crusher	Grind chamber(mm)	500*700	700*1000	700*1200	800*1200
	Motor power(KW)	55	75	90	132
Belt conveyor	Belt width(mm)	600	800	800	1000
	Motor power(KW)	2.2	3	3	3
Washing tank	Dimension of tank(mm)	5000mm×1200mm	6000mm×1600mm	8000mm×1800mm	10000mm×1800mm
	No. of thumb-wheel(pcs)	5	6	8	5
Screw conveyor	Screw diameter(mm)	250	300	400	500
	Motor power(KW)	2.2	3	4	5.5
Friction washer	Screw diameter(mm)	300	400	450	560
	Motor power(KW)	11	15	22	30
Centrifugal dryer	Rotor diameter(mm)	460	500	550	650
	Motor power(KW)	15	22	30	45
Hot air pipe dryer	Pipe diameter(mm)	133	159	169	219
	Heating power(KW)	36	36	48	55
Electrical cabinet	PLC controller	◯	◯	◯	◯
	Button type
High-speed hot cleaning		◯	◯	◯	◯
Color sorter		◯	◯	◯	◯
Man power(person/shift)		3	4	4	5
Delivery time(day)		60-70	70-80	80-90	100-110
Warranty(month)		12months	12months	12months	12months
Technical assistance		Egnineer available to service machinery overseas	Egnineer available to service machinery overseas	Egnineer available to service machinery overseas	Egnineer available to service machinery overseas

Certifications
Packaging & Shipping
Our Advantages
Features
Solution
Order Flowing Process:
Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services
About us:
Retech team has more than 15 years experience in plastic recycling feild.We can do customized design according to customer's special requests.
Retech Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!

---
