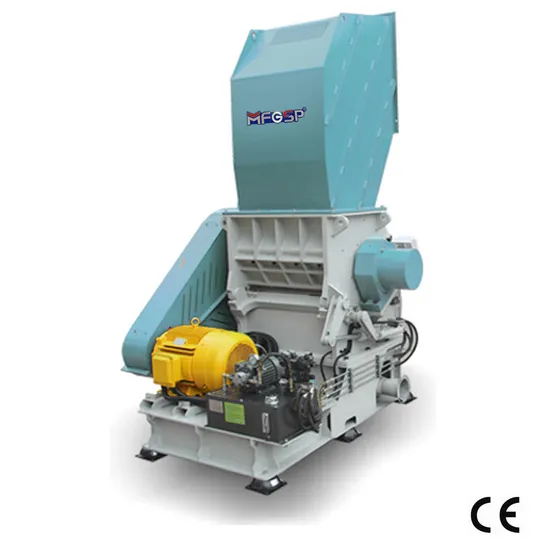

Effective Performance No dust Motor Power(15kW) Crusher

Product Description

Crusher

Performance characteristic:
Effective Performance Plus Least Maintenance
Ensures smooth size reduction of plastic and rubbery products, such as PP, PE, PET, PVC in all sizes. The crusher is usually used as secondary shredding due to its high rotational speed and sharp blades.
Featuring robust welded steel construction and stable operation, but during crushing,metal and similar hard foreign objects are not allowed to be disposed of into crushing chamber.4 rotors are tailored for versatile applications and producing uniform regrind, whose size is determined by screen opening.
The resulting regrind can be pneumatically conveyed and collected, forming a simple recycle line with no dust and reduced labour cost.

Item /Model	CS260	CS360	CS480
Hopper Opening AxB(mm)	600x260	600x320	800x420
Rotor Diameter(mm)	260	320	420
Rotor Speed(RPM)	560	520	520
Rotor Knife Qty(pcs)	3x2	3x2	3x2
Counter Knife Qty(pcs)	2x1	2x1	2x1
Motor Power(kW)	15	22	37
Screen Opening(mm)	Φ12	Φ12	Φ12
Dimension LxWxH(mm)	1300x1300x2150	1450x1450x2300	1650x1700x2400
Weight(kg)	1250	2200	2700

Features
Rotor blades and counter blades adopt D2 steel.
Main electrical components are trusted brands such as Siemens and S chneider.
Hopper & cradle are hydraulically actuated for easy blade & screen replacement.
Rotary and counter blades can be re-sharpened, greatly reducing operating cost.
Screen is easily interchangeable.

Item /Model	CL580	CL5100	CL5120	CL6100	CL6120	CL8120	CL8160
Hopper Opening AxB(mm)	800x520	1000x520	1200x520	1000x660	1200x660	1200x800	1600x800
Rotor Diameter (mm)	520	520	520	660	660	800	800
Rotor Speed (RPM)	520	520	520	460	460	460	460
Rotor Knife Qty(pcs)	5x2	5x2	5x2	5x2	5x2	7x2	7x4
Counter Knife Qty(pcs)	3x2	3x2	3x2	3x2	3x2	3x2	3x4
Motor Power (kW)	45	55	75	75	90	110	160
Screen Opening (mm)	Φ12	Φ12	Φ12	Φ12	Φ12	Φ12	Φ12
Dimension LxWxH(mm)	1970x1780x3170	1970x1980x3170	1970x2180x3170	2260x2040x3530	2260x2240x3530	2630x2470X3900	2630x2870X3900
Weight(kg)	3850	4320	4820	5430	6860	10030	14405

Applications
Plastic lumps,sheets, films, pipes, bottles, sprues, runners, rejects, etc.

---
