Product Details
Product Description
Product Description
Product Description
| Power supply |
|
| Battery | 4 x 12v 150 amp-hr |
| Charger | 27 amp High Frequency Charger |
|
|
|
| Basic specifications |
|
| Brake | Multi-Disc Friction (Hydraulic) |
| Capacity - Hydraulic Tank | 29.90 L / 7.9 gal. |
| Hydraulic pump | Fixed Displacement Gear |
| Vehicle weight | 3175.15 kg / 7000 lb |
| Self-respect | 9.59 Kg/cm2 / 137 psi |
|
|
|
| Performance parameters |
|
| Travel speed - platform raised | 0.80 km/h / 0.5 mph |
| Travel speed - platform lowered | 3.38 km/h / 2.1 mph |
| Drive System | Hydraulic Front Wheel |
| gradeability | 25% |
| Rise time | 80 sec. |
| Lower time | 41 sec. |
| Platform load | 349.27 kg / 770 lb |
| Platform load - extension | 113.40 kg / 250 lb |
| Platform load | 41in x 96in |
| Turning radius - outside | 2.54 m / 8 ft 4 in. |
|
|
|
| Dimensional data |
|
| Ground clearance | 0.13 m / 5 in. |
| Machine height | 2.54 m / 8 ft 4 in. |
| Machine height - folding rails | 1.91 m / 6 ft 3 in. |
| Machine length | 2.69 m / 8 ft 10 in. |
| Machine width | 1.14 m / 3 ft 9 in. |
| Platform extension length | 0.91 m / 3 ft |
| Platform height | 11.96 m / 39 ft 3 in. |
| Platform height - lowered | 1.4 m / 4 ft 7 in. |
| Platform height | 8.84 m / 29 ft |
| Platform railing height | 1.12 m / 3 ft 8 in. |
| Tire size | 16 X 5in |
| Wheelbase | 2.03 m / 6 ft 8 in. |
|
|
|
| Reach distance specification |
|
| Platform height | 11.96 m / 39 ft 3 in. |
| Platform height | 8.84 m / 29 ft |
| Working height | 13.79 m / 45 ft 3 in. |

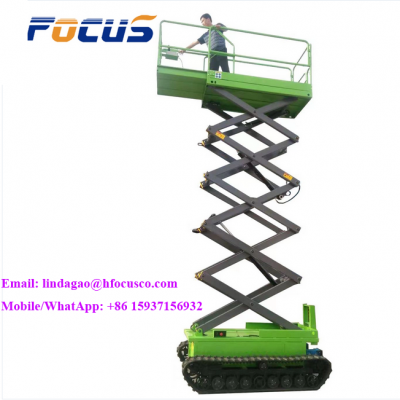

The R series scissor aerial work platform has been completely redesigned from both the chassis and platform.
Including active dent protection system, simple arm design, thick tires and other configurations to ensure its success
A scissor aerial work platform that is more durable, easier to maintain, and more suitable for rental.
• Unique and wide tilt angle, different heights correspond to different tilt angles, suitable for multiple working conditions.
• Among products with the same operating height, R3246 has the lightest total weight and is the only one that uses unique single-lift oil
Products with cylinder design have fewer hydraulic oil pipes and joints, fewer leakage points, and low maintenance costs.
• Swing-out component compartment for easy maintenance.
• Low total cost of ownership thanks to lubrication-free parts.
• PHP uses a single piston rod and single-stroke switch, with a simple design, low component failure rate, and more economical maintenance.
• Suitable for both indoor and outdoor use with high stability.
• All use all-steel platforms and "parallel" fence designs, which are strong and durable.
• Most products (except R1932) adopt large 16x5-inch tires, which have strong spanning ability and are suitable for construction site applications.
It has a wider range of uses, which can increase the rental rate; the outer rubber is thicker, more wear-resistant, and can reduce maintenance costs.
• R4045 is a 12-meter height model, suitable for indoor and outdoor use, with 5 sets of scissor arms using a unique centerline
Design concept, with extra wide scissor arm span, small shaking, comfortable and safe operation.
>>
