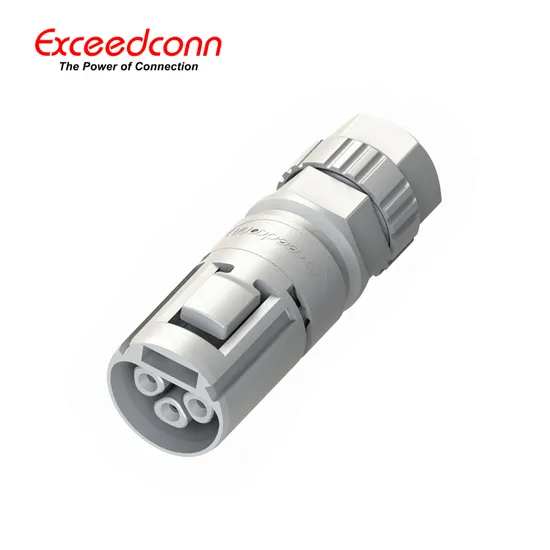

Waterproof Power M16 3 Pin Male and Female Plug Power Connector

Product Description

Product Description
Best Quality Waterproof Power M16 3 Pin Male and Female Plug Power Connector

Electrical Performance
Rated Voltage	600V (TUV)
	300V (UL/CQC)
Rated Impulse Voltage	2500V
Rated Current	10A
Contact Resistance	≤10mΩ
Insulation Resistance	≥500MΩ
Mechanical Capacity
Cable Retention	OD:5.5~9.0,F≥80N
Connector insertion force /Pullout force	≤25N
Connector Insert and pullout frequency	500
Cable Cross Section	0.5~2.0mm²
Operational Environment
Protection Degree	IP68 1m-1H
Ambient Temperature	-40ºC~+85ºC
Sealing element	960ºC
Flammability class(Insulator)	V-0
Material
Plastic	PA66 and PA66 30%GF
Conductor	Copper Alloy with Ni Plating
Sealing element	Silicone
Connecting Screw	Iron Alloy Ni Plating

Company Profile
Exceedconn is committed to provide lighting system connection solutions, products R&D, manufacturing and OEM service. The products are widely used in the fields of city lighting, landscape, solar energy and industrial control etc. Main customers are industry leading enterprises.With many years development, Exceedconn owns a professional and strong technical team. We can provide individualized connection solutions for different customer in different fields. Company has more than 50 patents in connection solutions till now.Adhering to the "rigorous, responsibility, cooperation" business philosophy, Exceedconn provides customer high quality products and service.Exceedconn---Your strong supports on connection solutions.
Certifications
Packaging & Shipping
FAQ
Q: Can you offer samples?
A: We can supply the free sample with freight collect.

Q: Can I visit your factory?
A: Yes,It will be better for us face to face to talk about the project.And I am sure you will be confident in us after you visit our factory.

Q: What's your after-sales service?
A: We provide you with technical support and can help you to solve your customers' problem.

Q: Do you have a catalogue?
A: Yes, we have product catalogue.Please contact us online or send an Email for catalogue.

---
