Air Oil Fuel Filter Paper Auto Corrugating Knife Pleating Machine

Product Description

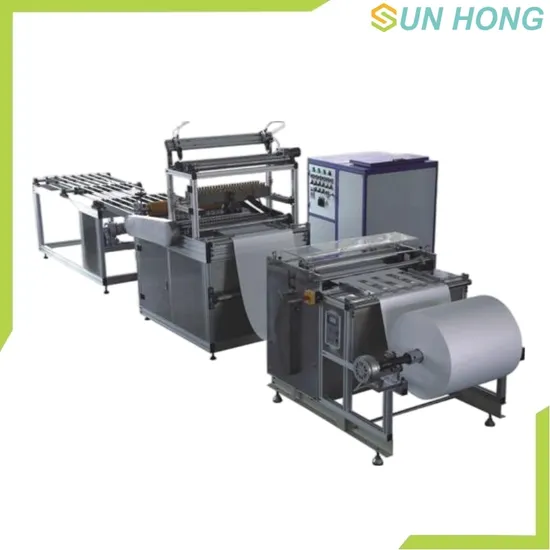

Auto Knife Pleating Machine
Auto Knife Pleating Machine is an important equipment for producing filter element. It suitable for folding 8-100mm filter material.It simplifies the function setting.operation and maintenance to the greatest extent through the menu graphicinterface,with higher reliability Versatility and flexibility.This machine can automatically adjust the folding height, and can change the angle of the knife according to the thickness of different filter materials without damaging the filter materials.
Application
1.The production line is applicable to automobile three filter industry, hydraulic industry, purification industry, water treatment and other industries.
2.The company can customize origami production lines of different specifications according to customer needs (i.e. machine widening and folding height adjustment). This machine can also customize M-type origami machine according to customer requirements.
Main components of equipment
1. Automatic paper tray
2. Pre slitting feeder
3. Printer
4. Automatic counter
5. Filter paper folding machine (the host is equipped with preheating setting board and computer control box).

Technical parameters
1. Pre slitting feeder: 55-1050-ii type
(1) Paper feeding speed: 0.5m/min ~ 12m / min adjustable
(2) Adjustable width of filter paper: 32 ~ 1100mm
(3) Power supply voltage: 220V / 50Hz
(4) Motor power: 0.75kw
(5) Working pressure: 0.6MPa
(6) Machine weight: 350kg
(7) Overall dimension: 1500 × 1300 × 1100mm (long × wide × High)
2. Printer: 55-1050-ii
(1) Maximum printing width: 1050mm
(2) Printing distance adjustable range: 6 ~ 55mm
(3) Power supply voltage: 380V / 50Hz
(4) Motor power: 1.5kw
(5) Machine weight: 400kg
(6) Overall dimension: 1550 × 520 × 1100mm (long × wide × High)
3. Folding machine: 55-1050-ii type
(1) Maximum product width: 1050mm
(2) Adjustable folding height range: 6-55mm
(3) Folding speed: 0-120 fold / min, stepless adjustable
(4) Power supply voltage: 380V-50Hz
(5) Motor power: 1.5kw
(6) Preheating power: 7.2kw
(7) Temperature control range: normal temperature - 200 ºC
(8) Working pressure: 0.6MPa
(9) Machine weight: 750KG
(10) Overall dimension: 1670 × 1720 × 1240mm (long × wide × High)
Delivery & Shipping
Solid wooden case by sea

---
