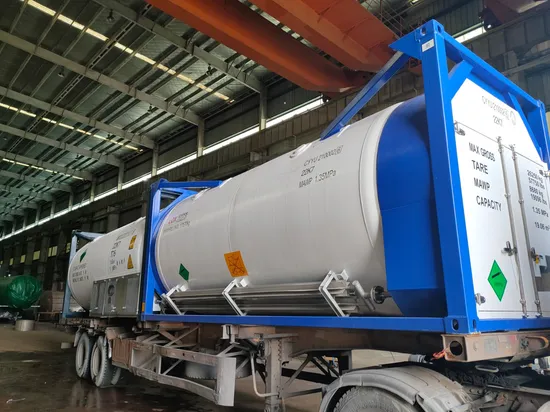

20FT/T75 ISO Portable Tank for Cryogenic Lox Lin/Lar/Lco2/LNG

Product Description

20FT/T75 ISO Portable Tank for Cryogenic Lox Lin/Lar/Lco2/LNG

Model:1CC-TCS-20000/24 Insulation type:Multi layer
NO	Items	Inner vessel		Outer vessel
1	Design pressure MPa	2.4		-0.1(outer)
2	Working pressure MPa	2.1		-0.1(outer)
3	MAWP MPa	2.4		/
4	Design temperature ºC	-40		-19~50
5	Working temperature ºC	≥-40		normal
6	Pneumatic test MPa	2.4		/
7	G. Vol m3	20.11		5.13(interlayer)
8	E. Vol m3	18.5		/
9	Medium	LCO2		Multi layer
10	Main material	16MnDr		16MnDr
11	Treatment	Sanding		Sanding and coating
12	Corrosion allowance mm	0		1.0
13	Joint efficiency	1		0.85
14	Filling rate	92%		/
15	Static evaporation %/d	/
16	Seal off vacuum degree Pa	≤1×10-2
17	Leakage of vacuum interspace Pam3/s	≤1×10-6
18	ISO code	22T7
19	Diameter mm	Φ2200	Φ2400
20	External Dimensions mm	6058×2438×2591
21	type	Horizontal
22	Tare weight Kg	~12300
23	Fully loading weight Kg	~21700
24	Design service life	10years
25	Open pressure for safety valve	2.55Mpa
26	Sort
27	Painting	Jotun
28	Thickness of coating Um	300
29	Shipment classification	CCS
30	Portable tank guideline	T75

https://dswgascylinder.en.made-in-china.com/product-group/foIEUdFugRcp/Storage-Tanks-catalog-1.html
About us:
Our company is one of main factory in China Chemical Equipment Group, and as well as the biggest pressure vessel manufacturer in Zhejiang. Sep. Established in 1972 years, We're engaged in design and manufacture pressure vessel for more than 40 years, and have the Design License of Special Equipment (Pressure vessels of type , , ) (RSPZJHG0401-2), It has the following licenses issued by the State Administration of Quality Supervision, Inspection and Quarantine: A1, A2, B3, C2 and C3 pressure vessel manufacturing licenses; the design license for A1, A2, C2 and C3 pressure vessels; and the design license of GC1(3), GC2 and GC3 pressure piping.
We have passed ISO9001:2008 International Quality Supervision System Certification. We own 170000 square meter building size The total assets is 180 million, has 500 workers and staff members, including 55 technician (6 super- engineer, 19 engineer, 10 primary technician, 1 super-technician, 4 technician, 15 Nondestructive Tester (RT, UT). There're 8 departments, such as technology, production, sales, quality, purchase, finance, secretary and standard, 1general management office, 1 international export office (Ningbo DSW), 5 workshops and 1 Installation Company. Set up the Welding Test station with Ningbo Bureau of Quality and Technical Supervision. Quality Guarantee System charged by quality engineer, design engineer, welding.
