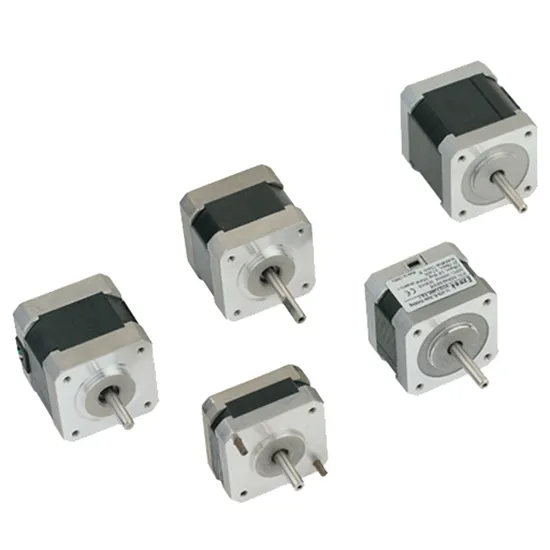

39mm Frame 1.8 Degree Enhanced Hybrid Stepper Motor

US$11.40
100-499 Pieces
US$10.26
500-999 Pieces
US$9.75
1,000+ Pieces

Basic Info.

Model NO.
MP039NA302
Excitation Mode
PM-Permanent Magnet
Function
Control
Operate Mode
Hybrid Stepper Motor
Certification
ISO9001
Brand
Exmek Electric
Transport Package
Carton and Wood Pallet
Specification
CE, RoHS
Trademark
Exmek
Origin
China
HS Code
8501310000
Production Capacity
400, 000 PCS/Year

Product Description

General information Step angle accuracy: 1.8°±5% Temperature rise: 80°C max Ambient temperature: -20°C~+50°C Insulation resistance: 100M(OHMS). min., At 500V Dielectric strength: 500V AC, 1S, 2mA Insulation class: B
Specifications
Part number MP039NA302
Phase current 0.5A
Phase-resistance 24 ohms
Phase inductance 45mH
Holding torque 28.4N/cm
Detent torque 2.16N/cm
Number of wires 4
Rotor inertia 24g.cm2
Length 38mm
Weight 200g
Special design available.
Mechanical
Company Profile Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd. Exmek Electric ---Registered Brand Name Business: Design and manufacture of motion control products and components Highly qualified personnel UL, CE, RoHS certification ISO 9001, ISO 14000 Company Capabilities Modern Motor Design and Manufacture Part Set Design and Manufacture Magnetic Design Software-Motorsolver Molding Shipping world wide Why Exmek Electric Open for general discussion and questions Time to market or theatre of operations can be substantially reduced Talented team of engineers providing innovative technical solutions One stop "supplier" and complete sub-system Quality products provided at competitive low cost Ability to ship world wide On time delivery Training at Customer locations Fast service on return and repair results Many repeated customers Applications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.
We are open for general discussion and questions. Contact us now!
