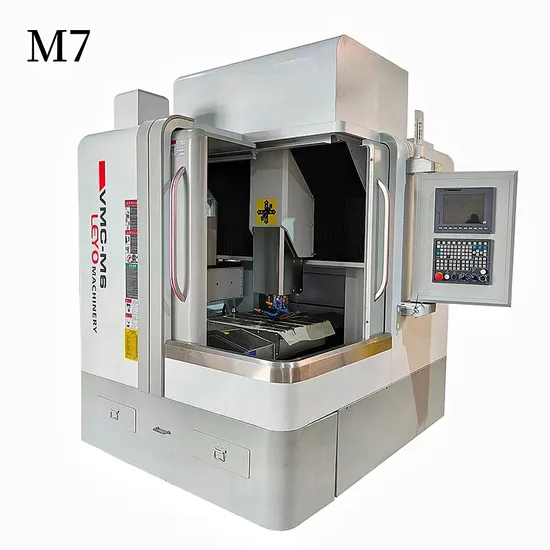

Leyo M7 Xyz Travel 700/600/300 mm High Speed 3/4/5 Axis Small CNC Milling Machine

Product Description

LEYO M7 high-speed CNC milling machine developed by Dongguan Liyang Intelligent Technology Co., Ltd. has the characteristics of high rigidity, high precision, and high-speed machining. The column adopts a gantry structure design to achieve stable processing; The workbench adopts a reasonable slider span and undergoes surface quenching to ensure uniform stress and improve hardness; The bed adopts a trapezoidal cross-section, reducing the center of gravity and improving torsional strength; The entire machine adopts the optimal structural design, providing the best overall stability performance.
The three-axis high-speed displacement can reach 24/24/24m/min, the tool change time is only 3S, and the maximum spindle acceleration and deceleration time is 2S (0-30000rpm). These indicators greatly shorten non machining time and improve machining efficiency. Very suitable for batch processing of parts in enterprise workshops, especially precision molds, precision products, etc.

LEYO M7 High Speed Cnc Milling Machine Technical Parameters
Items		Unit	M7
X/Y/Z axis travel		mm	700/600/300
X/Y/Z rapid moving speed		m	24
X/Y/Z rapid feeding speed		m	20
Working table (L*W)		mm	700x600
Working table max load		kg	600
Spindle taper hole			BT30
Spindle type			Motorized spindle
Spindle motor power		kw	11
Spindle speed		rpm	30000
Controller*			GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens
Tool magazine capacity *		T	12 servo/None
X/Y/Z position accuracy			±0.005
X/Y/Z reposition accuracy			±0.003
Machine weight		kg	4200
Machine size		mm	1900*2376*2500
Tip:The asterisk is optional,and price is different. More requirement contact us.

Options
Controller: Taiwan:LNC M6800/M8650R(5 axis)/SYNTEC22MA/220MA-5(5 axis) Japan:Mitsubishi M80B/M80A Fanuc Oi-MF-plus German:Siemens 828D/840D(5 axis) Spindle:BT30-30000/40000/60000 Tool library:None/12T/16T	Others: 4/5 axis cnc rotary table 4 axis disc tailstock Three jaw chuck Four jaw chuck 4 axis manual thimble tailstock 4 axis pneumatic thimble tailstock Spiral chip conveyor Chain chip conveyor Oil water separator Oil mist separator Workpiece probe Automatic tool setting instrument Coolant through the spindle (CTS 20 bar/30 bar) 3 axis optical grating rule

We also offer customized service, if you have other requirements,please contact us.

LEYO M7 High Speed Cnc Milling Machine
Machinable Materials:
Carbon steel Alloy steel Copper Aluminum
Aluminumalloy Plastics Composite materials
Application:
-Machining small precise mold
-Graphite or copper electrode
-Make model sample by various materials, such as shoe mold, auto parts mold
-Surface engraving, 3D shape engraving, 3D relief engraving and different engraving
LEYO M7 high-speed CNC milling machine Specification:
X/Y/Z axis travel:700/600/300 mm
X/Y/Z maximum moving speed:24 m/min
X/Y/Z maximum cutting feed rate:20 m/min
Table size (L x W):700*600 mm
Maximum payload:600kg
Spindle speed:30000rpm
Spindle motor power:11kw
Spindle taper hole (model /installation size):BT30
Ball screw : 32*05 mm
Linear guideway:30mm/2
X/Y/Z servo motor power:0.85kw with brake
CNC Controller:SYNTEC
ATC:12T servo ATC
Positioning/Re-positioning accuracy:±0.003 mm
Machine size (L*w*h):1900*2376*2500 mm
Machine weight:4200 kg
BT30 Motorized spindle with flang 11kw 30000rpm
-High precision -Large torque -Stable speed -High cutting efficiency -Less noise -Small vibration
Working table:700*600 Max payload: 600kg
Taiwan controller-SYNTEC
Ball screw linear guide Taiwan,Japan and European brand-PMI/HIWIN/THK
-Customized -One time forming -High precision grade -Accuracy:±0.008mm
Ball screw : 32*05 mm Linear guideway:30mm/2
12T Servo Automatic tool library-Improve processing effectivy
-Good stability -Fast tool change speed -Stable speed High cutting efficiency -Small vibration -Less noise
Reid heat exchanger & Spindle Oil cooler

High efficiency and energy saving Powerful and fast refrigeration Constant temperature control
Sample display
4/5 axis cnc rotary table
LEYO is a cnc machine manufacturer located in Houjie Town, Dongguan City, Guangdong Province, China, . Our main products are middle and high quality 3-5 axis cnc milling machines like high-speed cnc milling machines, gantry milling machines, etc; cnc machining center like vertical machining center, horizontal machining center, vertical horizontal machining center, robodrill compact machining center, gantry machining center etc; and cnc lathe, etc. These machines are mainly used in the producing and machining of parts and molds in 3c electronics, automobiles, instruments and meters, electronic appliances, medical devices, aerospace, machinery manufacturing, new energy vehicles, 5G communication industries and other industries. Our company has obtained several utility model patents and invention patents, CE certificates, ISO9001 quality management system certificates, and factory strength certification from SGS, TUV and other international testing and certification institutions. Our machinery and equipment are sold to the domestic and foreign markets. The main domestic markets are Guangdong, Zhejiang, Fujian, Sichuan and many other provinces. The international market is mainly exported to Europe, Central Asia, Southeast Asia and other countries. Our goal is to provide the world with high quality CNC machine.
About LEYO service
1. Customized service
1. Design logo for free or remove logo services.
2. Free design of sheet metal. If you want the color of the machine appearance to be consistent with the color of your company's brand or factory decoration, we also provide free custom sheet metal design services.
3. Customized machine configuration for free. Customized according to customer configuration requirements, such as the brand and model of screw rod and linear guide rail, the brand power and speed of spindle, the brand and model of controller, and the type of tool magazine.
4. Customized special machines for free. If you have special requirements on the material, process, precision and efficiency of the products you are processing, we can customize the models based on the products you are processing.
5. Free design of automatic production line.
The customization quantity and price will vary according to the complexity of customization.
2. One stop procurement service
Provide accessories, 4/5 axis cnc rotary table, 4 axis tailstock, automatic tool setting instrument, workpiece probe, chain chip conveyor, robot arm etc. Consumables like tools, tool holders, tool carts, tool boxes, etc.
3. Free online and offline after-sales service
The warranty period of all models is one year, and spare parts and online and offline after-sales services are provided free of charge within one year. However, the travel expenses of after-sales personnel need to be paid by the customer, such as transportation, board and lodging.Lifetime free online after-sales technical guidance service.
4. Fast delivery service
If you need it urgently, please tell me the expected delivery date, and we can arrange it according to customer needs. The fastest delivery time is 7 working days.

---
