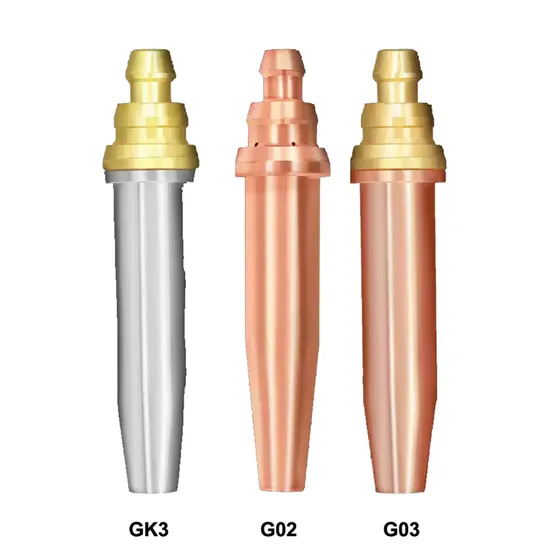

| Model G02 | Cutting oxygen pore size | Cutting thickness | Cutting speed mm/min | Gas pressure kg/cm³ | Gas consumption | ||
| Oxygen | Acetylene | Oxygen | Acetylene | ||||
| 00 | 0.8mm | 5-10mm | 600-450 | 2-3 | >0.3 | 0.9-1.3 | 340 |
| 0 | 1.0mm | 10-20mm | 480-380 | 2-3 | >0.3 | 1.3-1.8 | 340 |
| 1 | 1.2mm | 20-30mm | 400-320 | 2.5-3.5 | >0.3 | 2.5-3 | 470 |
| 2 | 1.4mm | 30-50mm | 350-280 | 2.5-3.5 | >0.3 | 3-4 | 470 |
| 3 | 1.6mm | 50-70mm | 300-240 | 3-4 | >0.4 | 4.5-6 | 620 |
| 4 | 1.8mm | 70-90mm | 260-200 | 3-4 | >0.4 | 5.5-7 | 620 |
| 5 | 2.0mm | 90-120mm | 210-170 | 4-5 | >0.4 | 8.5-10.5 | 620 |
| Model G03 | Cutting oxygen pore size | Cutting thickness | Cutting speed mm/min | Gas pressure Mpa | Gas consumption | ||
| Oxygen | Propane | Oxygen | Propane | ||||
| 0 | 0.6 | <8 | 700-500 | 0.3-0.4 | >0.03 | 2.5-3 | 470 |
| 1 | 0.8 | 8-15 | 500-380 | 0.3-0.4 | >0.03 | 3-4 | 470 |
| 2 | 1.0 | 15-30 | 350-250 | 0.5-0.6 | >0.04 | 4.5-6 | 620 |
| 3 | 1.2 | 30-50 | 330-280 | 0.6-0.7 | >0.04 | 5.5-7 | 620 |
| 4 | 1.4 | 40-80 | 300-230 | 0.6-0.7 | >0.04 | 8.5-10.5 | 650 |
| 5 | 1.7 | 80-120 | 260-200 | 0.7-0.8 | >0.05 | 12-15 | 780 |
| 6 | 2.0 | 120-160 | 180-140 | 0.8-0.9 | >0.06 | 21-24.5 | 1000 |
| Model | Packing | Carton Size | Gross Weight |
| ANME / PNME | 200pcs/ctn | 25*25*21cm | 19kgs |
