Outdoor Lpda Antenna Donor Antenna External High Gain Log-Periodic Antenna 12dBi

US$9.50
20-99 Pieces
US$7.50
100+ Pieces

Basic Info.

Model NO.
SG-OLA-12
Gain
12dBi
Function
Working for Repeater 2g 3G 4G Signal Booster
Receiving Distance
5~10 Km to Signal Station
Warranty
2years
Usage
Communication Antenna, Broadcasting Antenna
Operating Wavelength
Microwave
Material
Al
Directionality
Directional Antenna
VSWR
1.5~2
Base Antenna
Directional Antenna
Nature of Operation
Receiving Antenna
Sturcture Form
Wire Antenna
Dimensionality
Two-Dimensional Antenna
Usage Occasion
Home, Office, Shopping Mall, Packing Lot, Boat etc
Transport Package
Neutral Packing
Specification
440*207*65mm
Trademark
Sigbari
Origin
China
HS Code
8517707090
Production Capacity
5000PCS/Week

Product Description

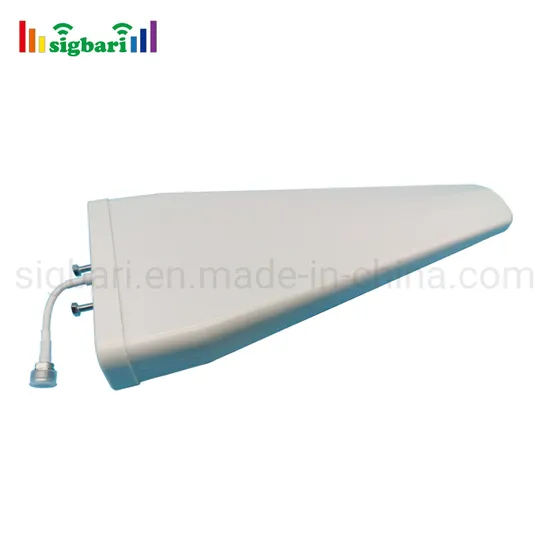

Outdoor LPDA antenna Donor antenna external High gain Log-Periodic Antenna 12dBi
2g 3g 4g Antenna Specification
Electrical Parameters
Model SG-OLA-12
Frequency Range 698-960 / 1710-2700 MHz
Gain 11 / 12 dBi
Horizontal-3dB Beamwidth 75°
Vertical-3dB Beamwidth 45°
VSWR ≤1.8 / ≤1.5
Input Impedance 50 Ω
Polarization Vertical
Max Input Protection 50 W
Connector N-Female
Lighting Protection DC Ground
Mechanical Parameter
Antenna Dimension Ф440×207×65 mm
Weight 0.96 kg
Cover Material ABS
Pole Diameter Ø38- Ø65 mm
Installation Installation on a pole
Rated Wind Velocity 60 m/s
Operating Temperature -40° ~ +60°

Packing information:
20pcs / carton boxes Size:77*35*46cm / Gross weight: 25kg
How is 2g 3g 4g Antenna working for cellphone signal booster?

if any questions or problems plase feel free to contact me, Send me email or chat with me directly for your requirements!
Thx for inquiring-Sigbari!
& you are welcome to visit us!
