Product Description
Product Description

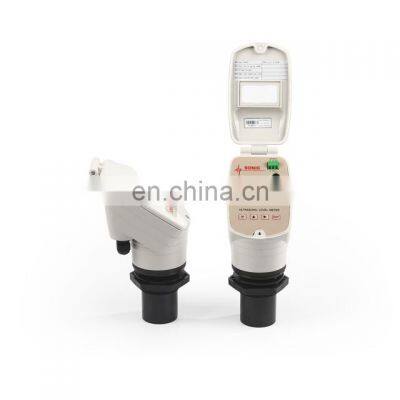

Product DescriptionThe meter includes several proprietary technologies, is safe and clean, with high precision and long service life, stable and reliable, and convenient to install and maintain, and is applicable to various fields of acid, alkali, salt, anticorrosion, and high temperature. Specification Measuring range 0～15m（Chosen based on actual measuring range） Blind area 0.25m～0.6m Ranging accuracy 0.3%（Standard condition） Ranging resolution 1mm Pressure Less than four atmospheric pressure Meter display With LCD to display liquid levels. Analog output 4～20mA Digital output RS485, Agreement Modbus or customization agreement Power supply voltage DC24V/AC220V, lightningproof device installed inside Ambient temperature －20℃ ～ ＋60℃ Protection grade IP65Features of Uitrasonic Level Meter1.For circuit design, high-quality power modules are selected to be as power supply parts and highly stable and reliably imported devices are used as components of the meter. It can fully replace imported foreign meters of the same type. 2.Patent sonic-wave intelligent technology software can make intelligentized echo analysis. It needs neither debugging nor other special steps. This technology has functions of dynamic thinking and dynamic analysis. 3.Our sonic-wave intelligent patent technology greatly improves the meter’s precision, and the precision of liquid level is up to 0.3%, which is enough to resist various interference waves. 4.The meter is a non-contact one and does not directly contact liquid, so the fault rate is low. The meter can be installed in several different ways, and the user can make meter calibration according to the Manual. 5.The meter’s all input and output lines must be with such protection functions as lightning protection and short circuit prevention.Installation way: Open environment commonly used stent installation method, using a fixed flange own instrument.As shown, instrument’s transducers made after the wave hit the level reflected back to transducer, the transducer receives income calculated after the hair waves to waves of time, are measured from the L, meter installation height minus the measurement of TH the distance L will be the current level H. Meter range means the instrument can measure the distance, the installation should be less than a high degree of TH range. Instrument blind means measuring instruments in the vicinity of the transducer cannot be measured in the region, the highest level with the transducer spacing should be greater than the blind, for example: blind spot for the 0.3m, the highest level with the transducer spacing must be greater than 0.3m.Related productsCompany ProfileDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.About UsTrade Terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.Contact UsAddress: NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:commercial at Whatsapp/Wechat;+8618842866177Website:/
>>
