Basic Info.
Model NO.
HDWS-5014H362M1
Feature
Waterproof / Weatherproof, High Definition
Video Capture System
Video Camera
Video Transmission System
Wireless Transmission
Software Function
Monitoring
Horizontal Resolution
600tvl
Color LCD Display
5-Inch IPS Screen
Vibration Resistance Level
5g
Operating Voltage
DC8-32V
Base
Strong Magnetic Base
Power
Rechargeable Battery Powered
Transport Package
Standard Veise Packing Means / as Requests 4 Sets
Specification
220 x 150 x 84mm
Production Capacity
40000/Month
Product Description

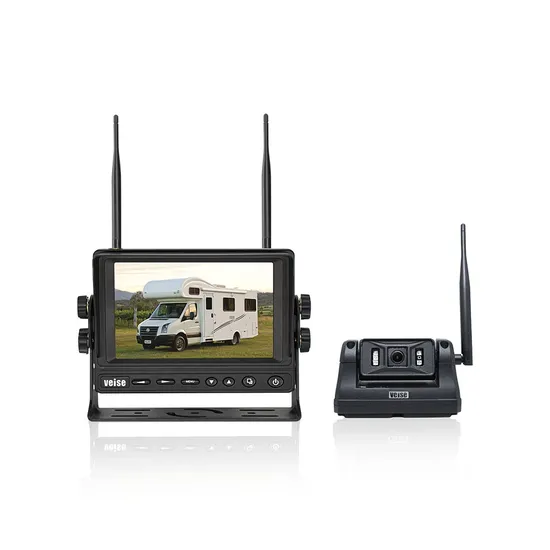

HD Wireless IP69K Waterproof Monitor Rear View Camera System W/ Rechargeable Battery & Magnet Base for Vehcle Features Veise wireless waterproof rearview monitor special design for extreme environment application scene. Such as high humidity, low temperatures, outdoor rainy weather and sea area,mining operation equipment vehicle safety monitoring etc.
Installing wired rear cameras system in operation equipment vehicle etc sites can be challenging. You might find it impossible to run the cables, lack electricity, or the process become overly expensive. you can overcome these challenges with mobile power wireless observation camera system.
| Waterproof wireless high-definition car monitor (MWHD-5014) |
| Color LCD Display | 5 inch IPS screen |
| Wireless Receiver | Built-in 2.4G wireless receiver |
| Picture Mode | 1/2/3/4 screen mode |
| Working Frequency | 2400-2483.5MHZ |
| Receive Sensitivity | ≤-86 dB |
| Receiving Distance | Open ≤200m |
| Automatic Frequency Hopping | 80 |
| Resolution | 1920(H) X 1080(V)dot |
| Color System | PAL/NTSC (AUTO) |
| Brightness (cd/m2) | 600 |
| Waterproof level | IP68 |
| Load Dump | ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms) |
| Anti-vibration Grade | 5G (in line with GB-T2423056-2006 standard) |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -30ºC to +80ºC |
| Operating Voltage | DC8-32V |
| Dimensions | (L x W x T) (220 x 150 x 84mm) |
Wireless HD Car Waterproof Camera (CWHD-362M)
| 1080P Wireless HD Built-in Battery Waterproof Magnetic Camera (CWHD-362M) |
| Image Sensor | 1/2.9 Color DSP |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmit Power | 18dBm |
| Launch Distance | ≤200m |
| Resolution | 1080P |
| Effective Pixels | 1920(H) X 1080(V) |
| Viewing angle | 130° |
| IR Distance | 5M |
| Shell Material | Aluminum alloy |
| Waterproof Level | IP69K |
| Working voltage | DC5V (battery powered) |
| Cell Type | Lithium Polymer Battery |
| Product Capacity | 8000maH |
| Interface Input | Type-C waterproof interface (with QC2.0 fast charge protocol) 12V/1.5A |
| Power Display | Fast charge indicator and 25%-50%-75%-100% battery indicator |
| Battery Switch | Touch switch |
| Charging Sycle Temperature | 0ºC~+40ºC |
| Charge And Discharge Times | >800 times |
| Discharge Time | About 20 hours |
| Installation Method | Mounting with silicone-clad magnetic base |
| Operating Temperature | -10ºC to +60ºC |
| Storage Temperature | -20ºC to +70ºC |
| Seismic Rating | 5G ( Meet the standard of GB-T2423056-2006) |
| Dimensions | 138(W) x 80(H) x 70(D) mm (without antenna) |
Product Application
>>
