Advanced Plastic Granulator Recycling Machine Production Line for Efficient Waste Management

Product Description

Plastic Recycling Machinery Line Introducing the Plastic PE recycling machinery line by Zhangjiagang Jorbin Machinery Co., Ltd. This line includes a pelletizing machine and granulating machine, featuring a water-ring hot die LDPE film granulation machine and HDPE film pelletizing machinery with vertical water-ring hot die face pelletizing method. It can also accommodate horizontal water-ring hot die face pelletizing and wind cooling die face pelletizing to suit various material requirements.

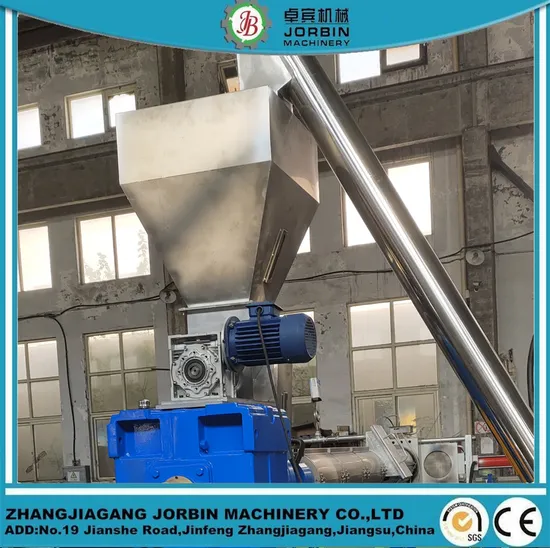

Working Principle: The high-speed mixer ensures equal mixing of materials, followed by feeding into a specially designed hopper using a screw charger. Different materials are processed with custom screw designs to optimize performance.
Features: Highly efficient with automatic operation and low power consumption. Special screw design tailored to different materials, available in 38CrMoAL or bimetallic material. Air-free pellets production. Long machine lifespan. Line Components: The Plastic Recycling Machinery Line includes various components to streamline the recycling process effectively.

Item NO.	Item name	Quantity	Power
1	SJ120/28 Single screw extruder	1set	55kW
2	Three Feeders	1 set	1.5
3	Hot cutter mould	1set	--
4	Wind-cooling rubs surface hot cutter	1set	1.1kW
5	The first wind transmission system	1set	3kW
6	cyclone separator	1set	--
7	Wind-cooling vibrator	1set	0.8+1.2kW
8	The second wind transmission system	1set	3kW
9	Silo	1set	--
10	Electric control cabinet	1set	--

Zhangjiagang Jorbin Machinery Co., Ltd. Product Name: Feeder and Extruder Machine
Gear Box: High torque, low noise, external connection with cooling recycling system; Hard teeth face reducer Screw: 38CrMoA1A, Nitrogen treatment Barrel: 38CrMoAlA, Nitrogen treatment, barrel wind-cooling; temperature controller Drive Power: AC motor (160 kW) Screw Diameter: 150mm; Speed of the screw: 10-150rpm L/D Ratio: 28:1 Lubrication: Forced lubricating
Zhangjiagang Jorbin Machinery Co., Ltd. offers a PVC PP PE Granulator Plastic Pelletizing Recycling Granulating Extruder Machine Production Line. This machine is ideal for recycling PE PP flakes and producing plastic granules. Enjoy 24-hour after-sales service and a 1-year warranty.
Centrifugal Drier Efficiently dry PE, PP flakes with the PVC PP PE Granulator Plastic Pelletizing Recycling Granulating Extruder Machine Production Line from Zhangjiagang Jorbin Machinery Co., Ltd. 24-hour service, 1-year warranty, ideal for plastic flakes processing.
Water Tank Upgrade your recycling process with our PVC PP PE Granulator Plastic Pelletizing Recycling Granulating Extruder Machine Production Line from Zhangjiagang Jorbin Machinery Co., Ltd. Efficiently convert PE PP flakes into high-quality plastic granules. Enjoy 24-hour customer support, 1-year warranty, and durable construction for plastic flakes processing.
Contact me for more details on our PVC PP PE Granulator Plastic Pelletizing Recycling Machine. I can provide additional photos and videos for your reference.
Welcome to Zhangjiagang Jorbin Machinery Co., Ltd. Product Description At Zhangjiagang Jorbin Machinery Co., Ltd., we provide top-quality machines along with essential documents to ensure smooth operation:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book Additionally, we offer a one-year quality guarantee. If any malfunctions occur due to our responsibility, we will promptly send spare parts via DHL courier within 7 workdays and provide on-site technician support at no extra cost.
After the guarantee period, we offer payable spare parts and technician visits for maintenance. Any broken spares will be promptly shipped to you upon request.
We are confident that our quotation aligns with your needs, and we are ready to provide further information upon request.

---
