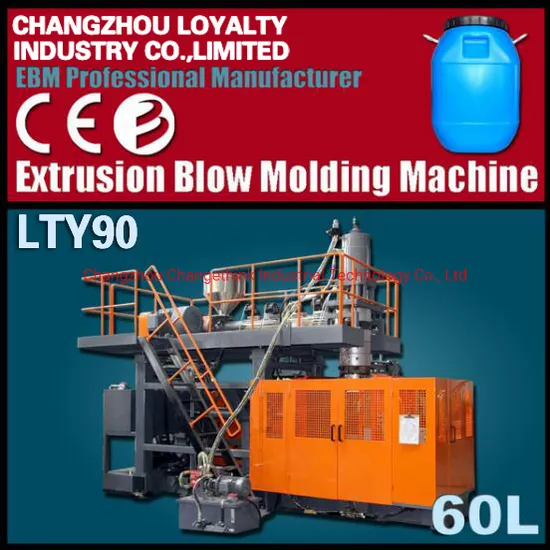

Lty90 Extrusion Blowing Molding Machine for 60L Barrel

Product Description

CHANGZHOU LOYALTY INDUSTRY CO.,LIMITED is specialized in Extrusion Blow Molding field. We provide blow molding machines, hollow moulds, auxiliary machines, special processing devices and project service for your production plans.We a professional manufacturer of Extrusion Blow Molding Machines, owning more than 16 years working experience in EBM machines' design, manufacturing, overhauling, service and project solutions. Our product line covers 0~30L continuous EBM models, high speed automatic EBM models, 30~500L accumulating EBM models, 1000~3000L large EBM models. Our machines are widely used in packing and producing industries of chemical, food & drinking, medical, automobile, traffic safety, recreation facility, family life and communal facilities. We provide the entire solutions for a whole producing line of project items.
Besides our Chinese domestic market, our blow molding machines also have been exported to Europ, Mid East, Africa, South America and Asia countries. The service covers product analysis, project sonsultation, manufacturing follow-up, exporting and after sales services.
We have mature technology and technics for multi-layer co-extrusion, high speed and high automatic blow molding machines, also can help our customers for producing line layout and producing flow arrangement. Our machines' quality is good and reliable, the working lifespan is more than 20 years. We hope to establish long term cooperation relationship with you and keep developing together.

1	LTY90 is accumulating type extrusion blow molding machine for 60L as maximum.
2	The output for 2.2KG 50L open top drum is 35 Pcs/hour, daily capacity is 840 drums.
3	High-hardness alloy coating screw driven by SIEMENS motor for plasticizing 140KG.
4	6.6L head volume allows max ejection weight 5KG, for max product weight 3KG.
5	Accumulating head metal parts with hardness processing and runner mirror polishing.
6	The clamping unit can be pushed outward with worm motor, easy for changing moulds.
7	Total machine control & 100 point parison thickness control for better product quality.
8	PHASE servo motor hydraulic system for low energy consumption & oil temperature.
9	Safety light curtains, protective guardrails, English version operation panels included.

COMPONENTS	BRAND	ORIGIN
100 POINT PARISON CONTROLLER	BAISU	CHINA
PARISON SERVO VALVE	ATOS	ITALY
PARISON SERVO TRANSDUCER	GEFRAN	ITLAY
ACCUMULATING TRANSDUCER	GEFRAN	ITLAY
15' COLORFUL TOUCH SCREEN	WIRETECH	TAIWAN
CONTRACTOR	SCHNEIDER	FRANCE
AIR SWITCH	SCHNEIDER	FRANCE
MID RELAY	OMRON	JAPAN
PROXIMITY SWITCH	RIKO	TAIWAN
INVERTER	DELTA	TAIWAN
OIL FILTER	DONGFANG	CHINA
OIL TUBE & JOINT	PACKER	U.S.A.
SEAL PARTS	DZ	TAIWAN
HYDRAULIC VALVE	HYTEK	TAIWAN
PNEUMATIC VALVE & CYLINDER	AIRTAC	TAIWAN
COMPRESSED AIR FILTER	AIRTAC	TAIWAN
LINEAR GUIDE RAILS	HIWIN	TAIWAN
HARD GEAR BOX	HAOKE	CHINA
HYDRAULIC PUMP	SUMITOMO	JAPAN
HYDRAULIC PUMP SERVO MOTOR	PHASE	ITALY
SERVO MOTOR CONTROLLER	MENGDE	CHINA
EXTRUSION MOTOR	SIEMENS BEIDE	GERMANY-CHINA

	SPECIFICATIOIN	/PARAMETER
	Machine Model	Accumulating EBM Model
	Max Product Volume	60 L
	Pre-heating Time	2.5-3 Hours
	Machine Weight	11.8 Tons
	Machine Size	5.4*2.5*4.0 m
/EXTRUSION UNIT
	Screw Diameter	90 mm
	Length/Diameter Ratio	22:1
	Heating Zone No.	5
	Heating Power	21.4 KW
	Cooling Fan No.	4
	Fan Power	0.6 KW
	Extrusion Motor Power	37 KW
	Plasticizing Capacity	140 KG
/CLAMPING UNIT
	Clamping Design	Fixed Platen Clamping Design
	Tie Bar No.	2
	Clamping Force	360 KN
	Platen Size	950*980 mm
	Platen Opening Stroke	450-1050 mm
	Max Mould Size	750*1400 mm
	Mould Thickness	460-580 mm
/HEAD UNIT
	Head Type	Accumulating Ejection Head
	Accumulating Volume	6.6 L
	Max Ejection Weight	5.0 Kg
	Max Product Net Weight	2.0 Kg
	Heating Zone No.	4
	Heating Power	21.3 KW
	Max Die Diameter	350 mm
/ENERGY CONSUMPTION
	Extrusion Motor Power	37 KW
	Oil Pump Servo Motor Power	22 KW
	Thickness Servo Motor Power	4 KW
	Extrusion Heating Power	21.4 KW
	Head Heating Power	21.3 KW
	Cooling Fan Power	0.6 KW
	Total Power	102.3 KW
	Average Energy Consumption	33 KW
/REFERENCE
	Cold Water Needed	0.3 Mpa	5500 L/hour
	Compressed Air Needed	1.0 Mpa	0.8 m3/min
	Installation Capacity	230 Amp, 3*35 m+ 1*25 m
	Loading Reference	40' HQ*1

---
