Plastic Machine Parts with Precision Engineering

Product Description

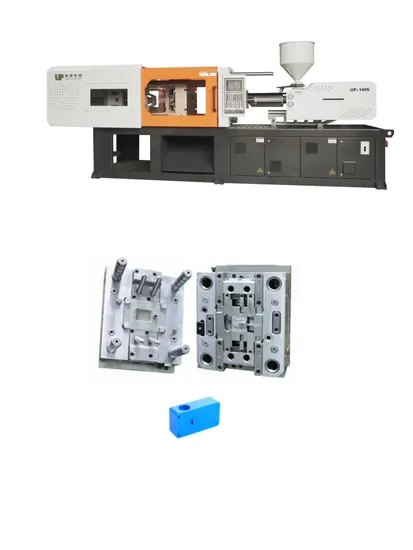

Ningbo Union Power Machinery Co., Ltd. - China Servo Injection Molding Machine
Product Description
Features:
Modulus of Capacitance: Includes position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).
Nozzle Parameters: Spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.
Code Mold Parameters: Code mold hole, slot size.
Ejection Mechanism: Provides the position of the ejection point, diameter of the ejector rod, and optional ejection force and ejection stroke.
Mold Opening Stroke and Maximum Opening Distance.
Benefits:
High precision and control in the injection molding process.
Efficient and reliable ejection mechanism for smooth operation.
Optimal mold opening stroke and maximum opening distance for versatile molding applications.
Contact Ningbo Union Power Machinery Co., Ltd. for more information on their China Servo Injection Molding Machine.

Technical Parameters	Model UP-140T
Injection Unit	A	B	C
Screw diameter (mm)	38	42	45
Shot Volume (cm3)	215	260	302
Injection weight (g)	194	237	272
injection pressure (Mpa)	186	152	132
Screw speed (rmp)	215
Clamping Unit
Clamping force (KN)	1400
Open stroke (mm)	380
Max Mold height (mm)	450
Min Mold height (mm)	135
Space between tie bars(mm)	420*420
Ejector force (KN)	46
Ejector stroke (mm)	120
Others
Pump pressure (Mpa)	16
Motor/driving power (KW)	13(14)
Heating power (KW)	8.2
Machine dimension (M)	4.2*1.2*1.9
Machine weight (T)	3.4
Oiltank cubage (L)	190

---
