| Negotiable | 1 Set (MOQ) |

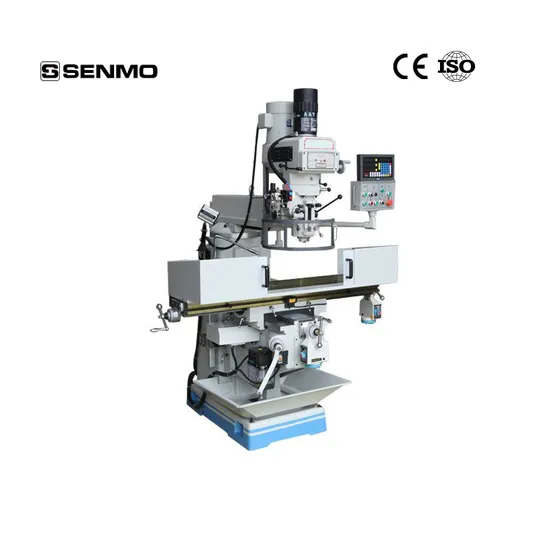

| Turret Milling Machine X6330,X6330A Feature |
| ·Heavy, solid model made of high-grade casting |
| ·All axes with adjustable dovetail slideways |
| ·Mill head can rotated and tilted |
| ·Adjustable gibes on table |
| ·Accurate position, good rigidity, big cutting power |
| ·Automatic spindle sleeve feed |
| Specifications | X6330 | X6330A | |
| Table size | 305x1370mm(12"x54") 305x1500mm(12"x58") | ||
| Table travel | Longitudinal | 870/1000mm | 870/1000mm |
| Cross | 360mm | 360mm | |
| Vertical | 380mm | 380mm | |
| T-slot No. and size | 3x16 | 3x16 | |
| Ram travel | 500mm | 500mm | |
| Distance from spindle nose to table surface | 0-350mm | 0-350mm | |
| Spindle taper | ISO40 | ISO40 | |
| Spindle travel | 127mm | 127mm | |
| Spindle speed | 50HZ | (16 steps) 65-4500rpm | |
| 60HZ | (16 steps) 80-5440rpm | ||
| Optional | Variable 65-3750rpm | ||
| Auto quill feed | 0.04/0.08/0.15mm/rev(0.0015"/0.003"/0.006"/rev) | ||
| Spindle motor | 3.75KW(5HP) | 3.75KW(5HP) | |
| Head swivel right to left | 90° | 90° | |
| Head tilting front to back | 45° | FIX | |
| Net weight | 1630kg | 1650kg | |
| Standard Accessories | Optional Accessories | |
| Draw bar | X/Y/Z axis power feed | |
| Tool box and tools | Air drawbar system | |
| Working lamp | Clamping kit | |
| Electric box | Mill chuck set | |
| Handle oil pump | Coolant system | |
| Chip tray | ||
| Hang up panel | ||
| Automatic lubrication oil pump | ||
| 3 axes with ball screws | ||
| Spindle protection with power off | ||
| Worktable protection with power off | ||
| DRO | ||
| Vice |
