High Torque Straight Transmission Planetary Gearbox for Machining Equipment

Product Description

High Torque Straight Transmission Planetary Gearbox for Machining Equipment
Product Description

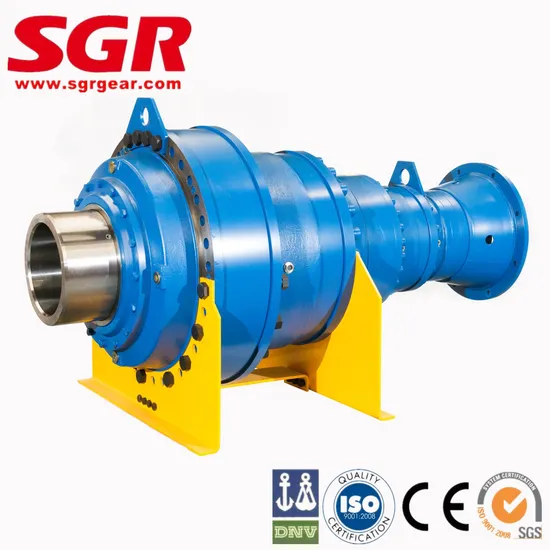

Straight 3 Stage Planetary Gearbox
Technical data:
1. Ratio range: 8.1-191
2. Input power: 0.12-270 KW
3. Permit torque rang: ≤ 50000 N. M
4. Output speed: 0.3~205 r/min
5. Structure: Foot-mounted, flange-mounted, shaft-mounted
Technical Parameter:
Output Torque Range: 1000 to 450,000 N.m
Transmissible Mechanical Power: up to 450 kW
Gear Ratios: 3 to 9000
Gear Unit Versions:
In line (Co-axial )
Right angle (with a spiral bevel gear set)
Output Configuration:
Foot and flange mounted
Output shaft: solid with key, spline, spline hollow,
Hollow with shrink disc
Input Configurations
Flanged axial piston hydraulic motors
Hydraulic orbit motors
IEC and NEMA motor adaptors
Solid input shaft
Hydraulic Brake: Hydraulically released parking brake on request
Application:
SGR Planetary Gearbox is widely used for industrial applications. With the designs deriving from modern innovating, the product makes great progress in a compact, price effectiveness and combination. The product configuration is highly versatile due to several options as far as the mounting, the output shaft and the motor interface. With overloading bearing fixed to the output shaft, the products has been one of the powerful solutions to heavy-duty drive problems.
How To Select a Complete SGR planetary gearbox:
Complete planetary gearbox made up of 4 parts :

A
Input Component
	1:AC electric motor
	2: NEMA or IEC motor
	3: NEMA or IEC motor adapter flange
	4: the Solid input shaft
	5: Solid input shaft with the fan
B
Gear Reductions (co-axial stage 1-5 ,right angle 1-4 . )
	6:Right angle reduction stage
	7: Planetary reduction stage
	8: Worm/planetary combination
	9: Bevel helical planetary combination
C
Output Component
	10: Flanged output/ Footed output-Solid shaft
	11: Flanged output/ Footed output-Male spline shaft
	12: Flanged output/ Footed output- Female spline shaft
	13: Flanged output/ Footed output-
	14: Flanged output/ Footed output-Pinion
	15: Shaft Mount output for shrink disc
D
Fittings
	16: Flange
	17: Pinion gear
	18: Sleeve coupling
	19: Endplate
	20: Splined bar
	21: Shrink disc

Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.
Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and efficiently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.
These features enable a reliable and safe service life of over 200 000 operational hours.
Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
FAQ Q: What is your business type? A: SGR is gearbox manufacturer and Solutions Provider, we are experts of the planetary
gear reducer, cone worm gearbox, modular design helical gear motor, worm gearbox etc.
A suitable model will offer to you according to your requirement, be
sides, SGR also has professional technical team specializes in the custom gearbox and gearbox repair.
Q: How long can you provide products guarantee Period? A: Based on different gearbox types, 12-18 months.
Q: What's Certification your product acquire? A: DNV-ISO9001: 2008, SGS, CE etc. and new products patent.
Q: How many technical employees in your company? A: We have 10 engineers in our R&D Dep., included 1 engineers who enjoy government 's allowance.
Q: Where is your company & how to contact you? A: Our factory located in No.879 , JinLiu Rd, JinShan District , Shanghai City , China .

---
