Polymer Lightning Surge Arrester Metal Oxide Zinc Type Without Gap From 11kv to 42kv Lightning Protection Surge Protection Ddevice Surge Suppressor

Product Description

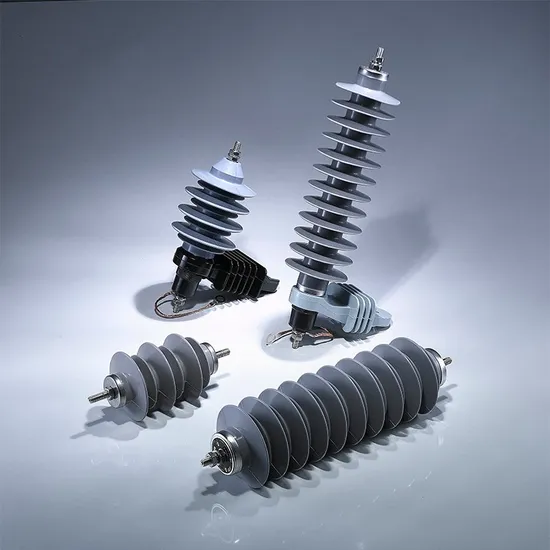

Polymer Lightning Surge Arrester Metal Oxide Zinc Type Without Gap from 11kV to 42kV
Yuanneng arresters utilize the good nonlinear volt-ampere characteristics of zinc oxide, the current flowing through the arrester under normal operating voltage is extremely small (microampere or milliampere). Once an overvoltage occurs in the system, the arrester immediately activates and enters the working state, instantly turning itself into a conductor and releasing high voltage to the ground to prevent the system voltage from continuing to rise and protect equipment and personal safety.
Yuanneng stipulates that the arrester should be electrically tested before delivery, measuring its insulation resistance, reference voltage at DC 1mA, leakage current of 0.75-fold U1mA, residual voltage test, partial discharge test, etc. With excellent quality, Yuaneng a series of distribution arrester models have passed the type test in Chinese famous lab.
Main Tachnical Parameter

Type	Rated Voltage (kV)(rms)	Maximun Continuous Operating Voltage (kV)(rms)	Max. Residual Voltage			2000μs Square Wave Current Impulse Withstand (A) (crest)	4/10µ s High current impulse withstand(kA)
			Steep Current Impulse (kv)	30/60µ s Switching current impulse (kv)	8/20µ s Lightning current impulse (kv)
YH5W-3	3	2.55	9.5	7.7	9	100	65
YH5W-6	6	5.1	19.0	15.4	18	100	65
YH5W-9	9	7.65	28.5	23.1	27	100	65
YH5W-10	10	8.3	36.0	27.0	30	100	65
YH5W-11	11	9.5	38.5	30.0	33	100	65
YH5W-12	12	10.2	38.0	30.8	36	100	65
YH5W-15	15	12.7	47.5	38.5	45	100	65
YH5W-18	18	15.3	57.0	46.2	54	100	65
YH5W-21	21	17.0	66.5	53.9	63	100	65
YH5W-24	24	19.5	76.0	61.6	72	100	65
YH5W-27	27	21.9	85.5	69.3	81	100	65
YH5W-30	30	24.4	95.0	76.5	90	100	65
YH5W-33	33	26.8	104.0	84.7	99	100	65
YH5W-36	36	29.0	114.0	92.7	108	100	65
YH5W-42	42	34.1	132.3	100.1	126	100	65

Type	Rated Voltage (kV)(rms)	Maximun Continuous Operating Voltage (kV)(rms)	Max. Residual Voltage			2000μs Square Wave Current Impulse Withstand (A) (crest)	4/10µ s High current impulse withstand(kA)
			Steep Current Impulse (kv)	30/60µ s Switching current impulse (kv)	8/20µ s Lightning current impulse (kv)
YH10W-3	3	2.55	9.5	7.7	9	250	100
YH10W-6	6	5.1	19.0	15.4	18	250	100
YH10W-9	9	7.65	28.5	23.1	27	250	100
YH10W-10	10	8.3	36.0	27.0	30	250	100
YH10W-11	11	9.5	38.5	30.0	33	250	100
YH10W-12	12	10.2	38.0	30.8	36	250	100
YH10W-15	15	12.7	47.5	38.5	45	250	100
YH10W-18	18	15.3	57.0	46.2	54	250	100
YH10W-21	21	17.0	66.5	53.9	63	250	100
YH10W-24	24	19.5	76.0	61.6	72	250	100
YH10W-27	27	21.9	85.5	69.3	81	250	100
YH10W-30	30	24.4	95.0	76.5	90	250	100
YH10W-33	33	26.8	104.0	84.7	99	250	100
YH10W-36	36	29.0	114.0	92.7	108	250	100
YH10W-42	42	34.1	133.0	100.0	126	250	100

Yuanneng Power was established in 2007 year which located in China Electric Capital-, Yueqing city. The corporation is committed to providing services for power infrastructure, including generation, transmission and distribution systems. As a modern high technology enterprise, Yuanneng successfully integrate production, development, sales and service together in the industry. The business scope include polymer insulator, fuse cutout, surge arrester, disconnect switch, and supporting power fitting products etc. In order to adapt to the development of globalization and occupy a favorable position in the changing international market, yuanneng production conform to different requirements in different regions and markets, such as IEC, ANSI, IEEE, and GB standard. Products manufactured by us have been qualified by Xi'an High Voltage Apparatus Research Institute Co., Ltd (XIHARI), National Insulator & Lightning Arrester Quality Supervision Inspection Center, State Grid Electric Power Science Academy Quality Inspection Test Center etc. By relying on Ningbo Port's and Shanghai Port's fast and convenient shipment ability, yuanneng successfully sells products to different countries. Present annual production capacity can reach 500,000pcs polymer insulator, 500,000pcs lightning arrester, 350,000pcs dropout fuse cutout, 250,000pcs disconnect switch. That is an important point for us to maintain a competitive advantage and be strong support for our clients. Yuanneng Power , will, as always, adhere to the development idea of" Human-oriented, Credibility-based ". We sincerely looking forward to working with you. Connect electricity connect the world.

---
