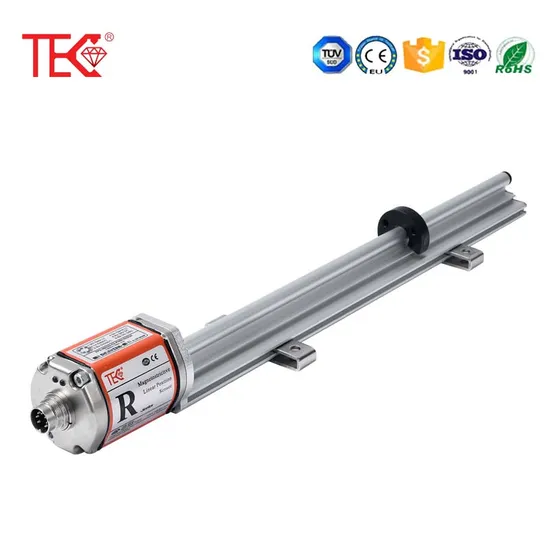

Tec Magnetostrictive Linear Displacement Sensor Linear Position Transducer Grating Ruler with CE Certification

US$450.00-1,150.00 1 Piece (MOQ)

Basic Info.

Model NO.
RP-M0250-C1-PH70-S1G1100-S0-CN
Movement
Linear Displacement
Production Process
SemiConductor Integrated
Material
Metal
Accuracy Grade
0.1μm
IP Rating
IP67
Certification
CE
Customized
Customized
Stroke Length
25~5500 mm
Data Format
Binary or Gray Code
Resolution
0.1/0.5 / 1 / 2 / 5 / 10 / 20 / 40/ 50 / 100 μm
Nonlinearity
<±0.01% of Full Scale
Repetition Accuracy
<±0.001% of Full Scale,
Hysteresis
<10μm
Temperature Coefficient
<15ppm/ºC
Magnet Velocity
Arbitrary
Protection Level
IP67rh Stainless Steel Rod
Operating Temperature
-40ºC ~ +85ºC
Outer Tube Pressure
35MPa (Continuous)/70MPa (Peak)
Input Voltage
+24VDC±20%
Operating Current
<80mA (Varying with Range)
Polarity Protection
Max.-30VDC
Overvoltage Protection
Max.36VDC
Transport Package
Paper Tube
Trademark
TEC Sensors
Origin
China
HS Code
90318090
Production Capacity
80000PCS/Year

Product Description

Product Parameters
Output: SSI output
Measuring length: 25-5500 mm
Repeat accuracy: <+0.001% of full scale, min ±1μm
Non-linearity: <+0.01% of full scale, min ±50 μm
Operating voltage Ub: +24Vdc ± 20%
Ambient temperature: -40°C ~+85°C
Mechanical configuration: Fastening M20 threads, Fastening M18 threads, Fastening 3/4" threads
Housing material: Aluminum alloy
IP rating: IP67
Approval/Conformity: CE
Product Description SSI output magnetostrictive displacement sensor can provide Synchronized Serial Interface (SSI), which can convert the real-time position of vernier magnet into 24-bit, 25-bit or 26-bit (binary or Gray code) serial data format, and transmit the data to the controller by serial communication after receiving the clock signal provided by the controller. The format of SSI output data is identical to absolute output encoder, and it can be directly connected with PLC function modules (such as SM338 or SM138 of Siemens), which can be conveniently used to replace absolute encoder. Installation Instructions RP Series aluminum profile provides flexible and simple external installation mode, which is suitable for stroke or position detection of linear motion mechanism, and can also be used for external position detection of hydraulic cylinder.
