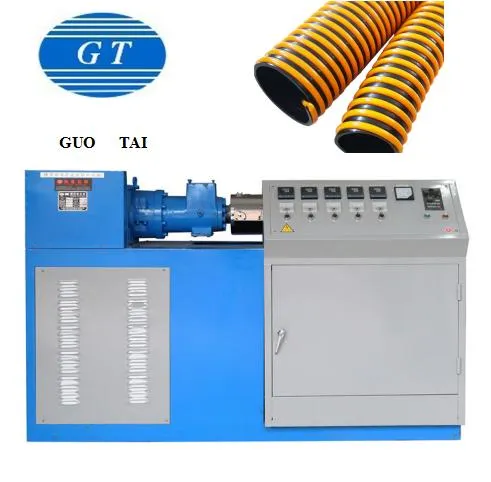

Sj-65/25hy Plastic Extruder Made in China Various Specifications Pipe Extruder/Profile Extruder

Product Description

Yuyao Guotai rubber and plastic Machinery Co. LTD Main products: plastic pipe extruder production line, plastic profile extrusion production line, wire/cable extrusion production line, plastic granulation unit and so on. Support to map to sample custom mold Welcome telephone consultation:

Plastic bellows production line
TPR TPE rubber band production line
Profile production line
Imitation wood pencil production line
PP/PE Pipe production line
Plastic granulator production line
Plastic Extruder manufacturing plant
Application:
This kind of extruder has wide application. Adopt different screw structure types, installed with siutable die head and downstream equipments, can produce all kinds of polymer products, can produce from HDPE, PP, ABS, PVC, PET, PC, PS and other plastics material to pipes, profiles, sheets and granules
Specifications
Plastic extruding machine
1. High capacity
2. Long life
3. High speed extrusion
4. Low energy consumption
The characteristics:
1) Installed with imported termo controllers, imported inverters or converters.
2) Hardened gear reducer box, carburized and grinded teeth, installed with forced cooling system to ensure high-performance, low noise and long service life
3) For the material feeding section of barrel there're slotted bushing and smooth grooves, two designs to meet the needs of different raw materials.
4) Screw and barrel made of nitrided 38CrMoALA wear resistant, corrosion resistant, high strength.
5) We also can provide a variety of exhaust-type extruder
Customer choice:

Mode	Screw Dia.	Length to diameter	Rotational Speed of screw	Height of center point	Capacity	Power Drive motor
SJ-3-/25CY	30mm	25: 1	10-160r/min	1000mm	19.5kg/h	2.2kw, 3kw
SJ-45D	45mm	20: 1	10-90r/min	1000mm	22.5kg/h	5.5kw
SJ-45/25CY	45mm	25: 1	16-160r/min	1000mm	35kg/h	7.5kw, 11kw
SJ-45/28CY	45mm	28: 1	16-160r/min	1000mm	40kg/h	7.5kw, 11kw
SJ-45/25HY	45mm	25: 1	16-160r/min	1000mm	35kg/h	11kw
SJ-50/25HY	50mm	25: 1	16-160r/min	1000mm	40kg/h	11kw, 15kw
SJ-65/25HY	65mm	25: 1	8-80r/min	1000mm	100kg/h	18.5kw
SJ-65/28CY	65mm	25: 1	15-120r/min	1000mm	100kg/h	18.5kw, 22kw
SJ-65/28HY	65mm	28: 1	16-160r/min	1000mm	120kg/h	22kw, 30kw
SJ-65/30CY	65mm	30: 1	15-120r/min	1000mm	120kg/h	22kw, 30kw, 37kw
SJ-65/34CY	65mm	34: 1	15-120r/min	1000mm	120kg/h	22kw, 30kw, 37kw
SJ-70/25HY	70mm	25: 1	8-80r/min	1000mm	120kg/h	22kw
SJ-90/25HY	90mm	25: 1	10-100r/min	1000mm	155kg/h	30kw, 45kw, 55kw
SJ-120HY	120mm	25: 1	30-90r/min	1000mm	250kg/h	75kw

---
