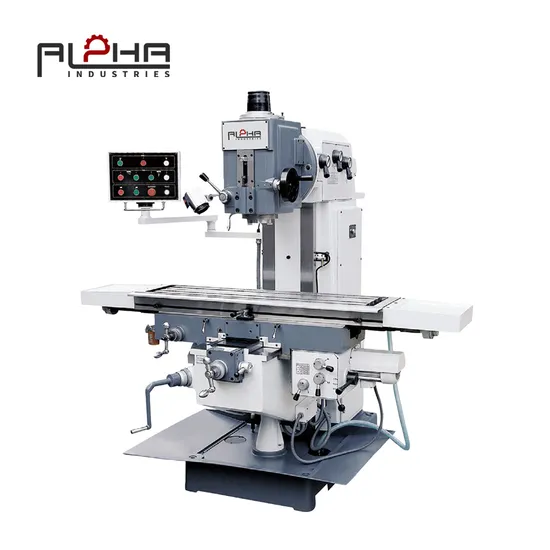

China Manufacturers Sell at Low Prices X5032 Universal Knee-Type Milling Machine

Product Description

Product Description
• A Spindle is steady
• B Spindle is movement
• C Spindle is movement but travel is longer

STANDARD ACCESSORIES
• Drill chuck
• Drawbar
• Work lamp
• Milling vice
• Coolant system
• Chip tray
• X-axis mechanical power feed
• Y-axis mechanical power feed
• Toolbox&tools
• Operation manual
• Quality certificate
• Packinglist

OPTIONAL ACCESSORIES
• DRO
• Vise
• Milling collet chuck
• Rotary table
• Dividing head
• 58 pcs clamping kits
• Keyless drill chuck

Product Parameters

Model No.	Unit	X5032A	X5032B	X5032C
table size	mm	1320×320	1320×320	1320×320
table travel	mm	800(750)×300	800(750)×300	1000×300(manual)
number/Width/Distance of T-slot	mm	5-14-63	5-14-63	5-14-63
spindle taper		ISO50	ISO50	ISO50
distance from spindle nose to table surface	mm	45-445	35-435	35-435
distance from spindle center to vertical guideway	mm	320	360	360
spindle speed range	rpm	58-1710	58-1710	58-1710
spindle motor power	kW	4	4	4
overall dimension	mm	1770×1820×1880	1770×1820×1880	2020×1820×1880
G.W.	kg	2400	2400	2400

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
