Hollow Core Prefabricated Precast Concrete Extrusion Wall Slab Panel Machine Partition Wall Board Making Machine

Product Description

Product Description

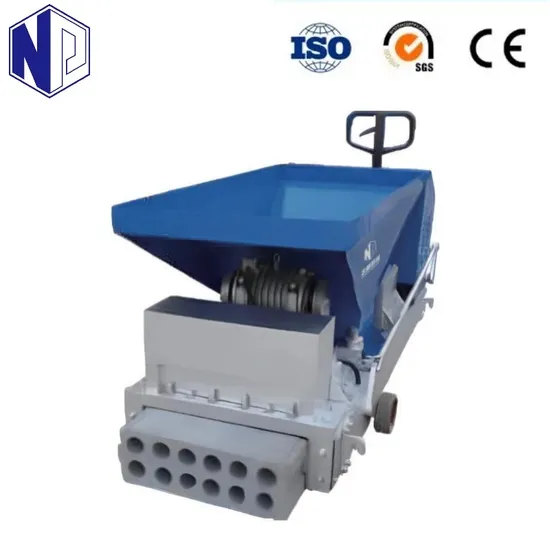

NP20 FLOOR SLAB AND WALLBOARD INTEGRATED MACHINE
NP20 type double-hole light wall plate machine main advantages:
1. The thickness is increased to 150-240mm. When laying pipes on the wall, there will be no penetration of the plate body due to opening holes and
grooving. At the same time, the structure of the orderly orthogonal arrangement of double rows of holes in the cross-section ensures good sound
insulation and heat preservation effect.
2. Double row hole light partition board is mainly used for filling walls with thicknesses of 200mm or greater than 200mm, and the wall is smooth to
ensure the overall interior decoration effect.
3. Reduce the production cost and simplify the production and installation process.
EQUIPMENT PARAMETERS:
NP20 light partition panel extruder working principle:
The machine integrates the fabric, vibration, forming, and stripping processes of light partition panel production. The main motor transmits power to the reducer through the pulley, and the output shaft of the reducer drives the spiral mixing knife to rotate in the forming cavity composed of the frame (wall panel), vibrator (vibrator), and pedestal. The lightweight mixture from the hopper is continuously transported to the forming cavity. Under the double action of the spiral mixing knife extrusion and the continuous vibration of the vibrator in the forming cavity, the lightweight mixing material resonates and is continuously squeezed and compacted to achieve the required shape, size, and density. At the same time, the vibrated dense strip
produces a reaction force on the rotating mixing knife, pushing the extrusion machine to move forward continuously. Thus, continuous pallet-making is realized. Through the molding scraper at the end of the machine, the top of the board is polished.
EQUIPMENT PARAMETERS:

model	board specification					board making speed (m/min)	supporting power		Reamer life (km)	length x width x height (mm)	Overall weight (kg)
	Board height (mm)	Board width (mm)	Hole number (psc)	Hole diameter (mm)	Hole diameter (%)		Main motor	Vibrator
NPDouble Layer150	150	600	16	40	22.5	>0.8~2.5	11	1.1	>80	2700*100*860	1300
NPDouble Layer180	180	600	14	58	34.24	>0.8~2.5	15	4	>80	2700*100*800	1200
NPDouble Layer200	200	600	12	68	36.6	>0.8~2.5	15	4	>80	2800*975*800	1570
NPDouble Layer230	230	600	10	88	44.0	>0.8~2.5	15	4	>80	2600*900*880	1692

Remark: The result will vary according to the material thickness and other factors; Subject to changes in technical parameters without prior notice; The
weight and dimensions of the equipment shall be subject to the physical object. Product Parameters
Small concrete wall panels and floor slabs all-in-one machines have the following advantages:
1. Efficient space utilization:
Small footprint: For small construction sites, small prefabricated component plants or work areas with limited space, small all-in-one machines are small in size and do not take up too much space. They can adapt to narrow site conditions and are convenient for flexible arrangement and use in different construction environments, which helps to improve the space utilization rate of the site.
Suitable for small space operations: In some projects such as indoor renovation and small building additions, the space is relatively cramped and large equipment is difficult to use. Small all-in-one machines can produce wall panels and floor slabs in a limited space to meet the construction needs of the project.
2. Flexible and convenient production:
Flexible product size: Concrete wall panels and floor slabs of various sizes can be produced according to different architectural design requirements and space layouts. Whether it is a small partition board, decorative wall panel, or a floor slab of a specific size, it can be produced by adjusting the equipment parameters to meet personalized building needs.
Convenient transfer: Small all-in-one machines are usually relatively light in weight and easy to transport and transfer. When moving between different construction sites, there is no need for large-scale transportation equipment and complex loading and unloading processes. It can be quickly transferred to a new work site, improving the efficiency of equipment use.
Simple operation: The operation interface of the equipment is simple and easy to master. Operators can start operating after simple training. This reduces the technical requirements for operators and saves manpower training costs for small construction teams or companies with relatively weak technical strength.
3. Good cost control:
Low equipment investment cost: Compared with large concrete wall and floor production equipment, the price of small all-in-one machines is relatively low. For small enterprises, individual construction households or small projects with limited funds, the investment pressure is relatively small, and production needs can be met within an affordable cost range.
Low production energy consumption: The power of the small all-in-one machine is small, and the energy consumption in the production process is low, which can effectively reduce energy consumption costs. At the same time, due to the high production efficiency of the equipment, the production task can be completed in a shorter time, reducing the operating time of the equipment and further reducing energy consumption costs.
High raw material utilization rate: During the production process, the amount and proportion of concrete can be accurately controlled to reduce the waste of raw materials. For small projects, saving raw materials is particularly important and can reduce the overall cost of the project.
Detailed Photos
PRODUCTION SITE
PRODUCTION SITE
FINISHED PRODUCTS DISPLAY
FINISHED PRODUCTS DISPLAY
CONSTRUCTION SITE
CONSTRUCTION SITE

---
