Factory Price PLC Splitter Distribution Box Outdoor Fiber Termination Boxes 1X8 FTTH Box

Product Description

Product Description

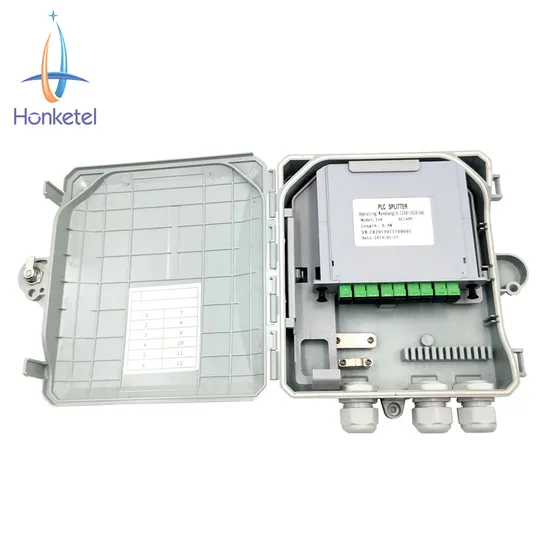

This Ftth fiber optic distribution box terminates up to 2 fiber optic cables, offers space for splitters and up to 8 fusions, allocates 8 pcs of SC adapters or and working under both indoor and outdoor environments. The fiber optic distribution box is a perfect cost-effective solution-provider in the FTTx networks.

Specification:

Name	Plastic Fiber Optic Distribution Box
Model	SJ-ODB-SK04-A
Capacity	8 Fibers
PLC Splitter	1x8 PLC Splitter
Dimension(HxWxD)	225 x 215 x 55mm
Installation	Wall-mounted/Pole-mounted
Material	Plastic
Color	White
Protection Level	IP65
Weight	0.65KG

Features:
ABS material used ensures the body strong and light.
Water-proof design for outdoor uses.
Easy installations: Ready for wall mount - installation kits provided.
Adapter slots used - No screws and tools needed for installing adapters.
Ready for splitters: designed space for adding splitters.
Space-saving: Double-layer design for easier installation and maintenances:
Lower layer for splitters and over length fiber storage.
Upper layer for splicing, cross-connecting, and fiber distribution.
Cable fixing units provided for fixing the outdoor optical cable.
Protection Level: IP65.
Accommodates both cable glands as well as tie-wraps
Lock provided for extra security
Accommodates 1X8 SC PLC splitters and up to 8 SC simplex adapters
Installation: Wall-mounted; pole-mounted
Max allowance for entry cables: max diameter 16mm, up to 2 cables
Max allowance for exit cables: up to 8 simplex cables
Application:
Widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
