Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Articulated Lift
Carrying Capacity
Middle-Level
Certification
CE, ISO 9001
Working Height Maximum (M)
20.2
Platform Height Maximum (M)
18.2
Horizontal Outreach Maximum (M)
11.6
Lift Capacity Maximum (Kg)
230
Platform Dimensions (M)
1.83*0.76
Center Ground Clearance (M)
0.4
Vertical Jib Rotation
135°
Transport Package
Container
Specification
6.72*2.28*2.47m

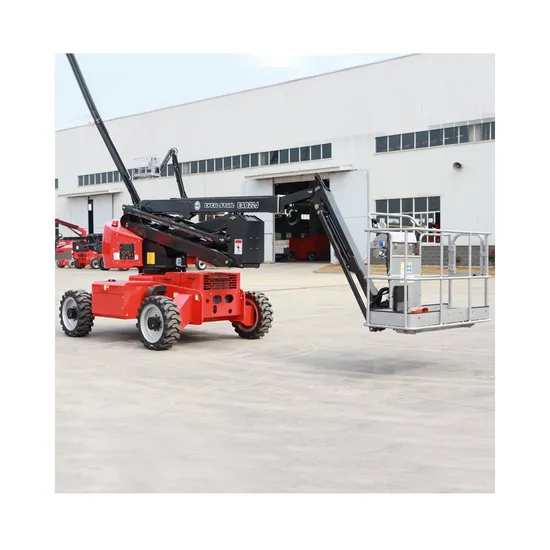

Product Description
Product Description
Optimized Heavy-Duty Performance:
The boom lift features a 230kg platform payload, surpassing comparable models in its class by 28%-a testament to its robust structural design and reinforced load-bearing components This enhanced capacity ensures seamless handling of tools, materials, and personnel, making it ideal for industrial maintenance, construction, and large-scale logistics projects.
Precision Control System:
Equipped with a multi-way valve control and pressure compensation technology, the hydraulic system delivers exceptional stability and accuracy during operation.This advanced setup minimizes jerky movements, enabling smooth articulation and telescopic extensions even under full load. Operators can maneuver around obstacles with confidence, leveraging the boom's 360° continuous rotation (for select models) and multi-stage folding arms to access confined or complex workspaces.
Enhanced Safety and Reliability:
The integration of a high-precision platform load sensor significantly reduces false alarms and unintended shutdowns caused by minor imbalances.Combined with EN280-compliant safety mechanisms (e.g., emergency descent systems, guardrails, and harness anchors), this design prioritizes operator protection while maintaining workflow continuity.
Unmatched Operational Efficiency:
A high-capacity hydraulic system powers rapid platform ascension and descent, cutting downtime and boosting productivity by up to 30% compared to conventional models.The 4WD steering system and adaptive terrain capabilities(45% gradeability in 4WD mode) further enhance mobility across rough or uneven surfaces, ensuring swift repositioning without compromising stability.
Versatility Across Applications:
From industrial plant maintenance to urban infrastructure projects, this boom lift excels in diverse environments. Its articulated telescopic boom combines horizontal outreach (up to 31.2ft/9.5m) with vertical reach (max. 86ft/26.38m), while compact stowed dimensions (e.g., 7.9ft/2.4m height) enable easy transport through standard doorways and elevators.
Key Advantages Highlighted:
Heavy-load engineering for demanding tasks Intelligent hydraulic control for precision movements Reduced false alarms via advanced sensor technology Rapid cycle times for heightened productivity Multi-environment adaptability (indoor/outdoor, rough terrain)
This blend of power, safety, and agility positions the boom lift as a top-tier solution for modern aerial work challenges.
Product Parameters
| Item | Unit | Performance Parameters |
| Max. working height | m | 20.2 |
| Max. platform height | m | 18.2 |
| Max. horizontal outreach radius | m | 11.6 |
| Span height | m | 8.3 |
| Lifting capacity | kg | 230 |
| Stowed Length | m | 8.23 |
| Width | m | 2.38 |
| Stowed Height | m | 2.5 |
| Wheelbase | m | 2.4 |
| Center ground clearance | m | 0.4 |
| Platform size (length*width) | m | 1.83×0.76 |
| Turning radius inside | m | 1.82 |
| Turning radius outside | m | 4.85 |
| Stowed drive speed | Km/h | 4.2 |
| Raised drive speed | Lm/h | 1.1 |
| Maximum grade ability | / | 45% |
| Tire type | / | 33×12-20 |
| Turntable slewing speed | / | 0~0.8 |
| Turntable rotation | / | 355° |
| Platform leveling | / | Automatic leveling |
| Platform rotation | / | 180° |
| Overall weight | kg | 8800 |
| System control voltage | V | 12 |
| Drive & steer mode | / | 4×4×2 |
| Engine | / | Yanmar/Kubota |
| Engine rated power | / | 36kw/2400rpm |
| Fuel tank capacity | L | 100 |
