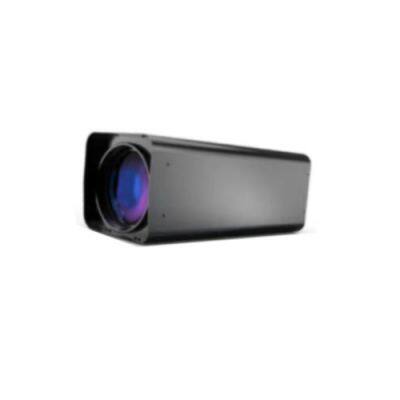

| Technical Parameter of HD Motorized Zoom Lens | |||
| Model No.: 10-010-001 | |||
| No. | Item | Specification | |
| 1 | Imager size | 1/1.7"(9.4mm) | |
| 2 | Pixel | 3MP | |
| 3 | Focal Length | 16.5～1060mm(64X) | |
| 4 | Interface | C-Mount | |
| 5 | FNO.(Max) | F3.5-F10.5 | |
| 6 | FOV（16:9) (DxHxV) | 1/1.7'' | W: 32.1º×28.2º×16.1º T：0.51º×0.45º×0.25º |
| 1/1.8'' | W：30.2º×26.5º×15.1º T：0.48º×0.42º×0.24º | ||
| 7 | Back Focus（in air） | 55mm | |
| 8 | Control Mode | Focus | Electrical/Motorized |
| Zoom | Electrical/Motorized | ||
| Iris | DC automatic | ||
| 9 | Effective diameter | Front | Φ103 mm |
| Rear | Φ16.5 mm | ||
| 10 | Focus range | 5m~∞ | |
| 11 | Filter size | M113×P1 | |
| 12 | Coating | 400～950nm | |
| 13 | Optical axis | Adjustable | |
| 14 | Dimension(WxHxL) | 135×150×388mm | |
| 15 | Weight | 6Kg | |
| 16 | Working Temperature | -10ºC～+50ºC/-40ºC～+70ºC | |
| 17 | Feature | ED、IR、2.0MP | |
