Basic Info.
Type
Stone Quarry Machine
Application
Machinery & Hardware
Cutting Ability
High Speed
Transport Package
Plywood Case
Specification
2200*800*800mm
Production Capacity
2000 PCS/Year
Product Description

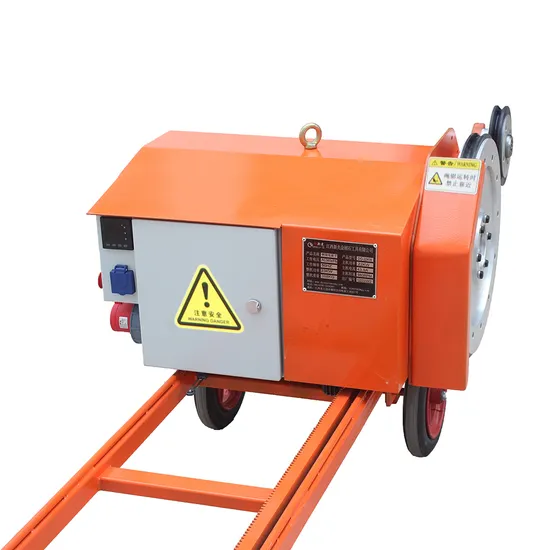

Description of Diamond Wire Saw Machine
Diamond Wire Saw Machine for Reinforced Concrete is widely used in the cutting of concrete floor slabs, pile foundations, support beams, columns, bridges, subways, hydroelectric dams, cement pipelines, etc. PRODUCT SPECIFICATIONS
Model
| 18KW-6P
| 22KW-6P
|
Gross power of machine(KW)
| 19
| 23
|
Power of main motor(KW)
| 18
| 22
|
Wire saw speed(M/S)
| 0-25
| 0-25
|
Feeding power(KW)
| 0.2
| 0.2
|
Move distance(MM)
| 1380
| 1380
|
Walking speed of machine(M/H)
| 0-142
| 0-142
|
Length of rail(M)
| 2
| 2
|
Working temperature range(ºC)
| -15ºC~+45ºC
| -15ºC~+45ºC
|
Power(AC V/HZ)
| 380V±5% 3P+N+E |
Weight(KG)
| 368
| 388
|
