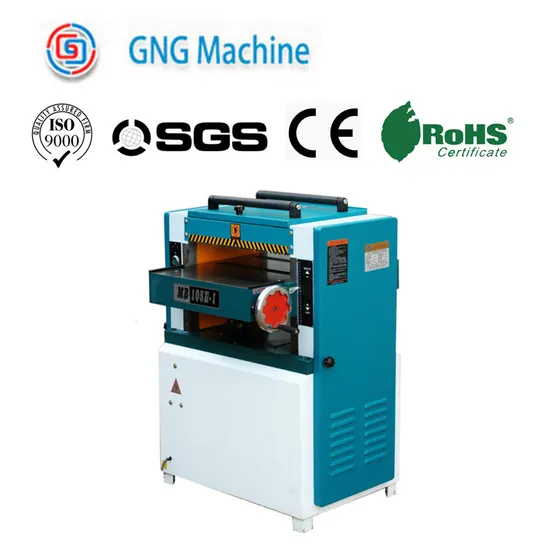

Surface Segmented One Side Woodworking Planer

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 100 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Bench Planer
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: MB104E-1
Voltage: 380v
Power(W): 4000W
Dimension(L*W*H): 785x780x1190mm
Weight: 330kgs
Certification: CE
Warranty: 1year
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in plywood case
Delivery Detail: 30-45days
Specifications
Universal cylindrical grinder. This machine is suitable for grinding external and internal cylinder and cone, and end face
Specifications
Max planing width: 410mm
Max planing amount: 4mm
Spindle speed: 6300-6450rpm
Pressing thicnkess: 8-200mm

Model	MB104E-1	MB105E-1	MB106E-1
Max. Planning Width	410mm	510mm	610mm
Planning Thickness	8-180mm	8-180mm	8-180mm
Min. Planning length	≥ 200mm	≥ 200mm	≥ 200mm
Max. Planning Depth	≤ 4mm	≤ 4mm	≤ 4mm
Auto Feeding Speed	7, 10m/min	7, 10m/min	7, 10m/min
Spindle Speed	5350-5500r/min	5350-5500r/min	4900-5100r/min
Motor Power	380v * 4kw	380v * 4kw	380v * 5.5kw
Spindle Cutting Dia	Φ 75mm	Φ 75mm	Φ 75mm
Overall Dimensions	785 * 780 * 1110mm	785 * 880 * 1110mm	790 * 980 * 1130mm
Net Weight	330kg	370kg	390kg

Woodworking single side segment planer is the model can plane the segment timber, it is developed from the traditional wood press planer.
SINGLE SIDE PRESS PLANER FEATURE
1, More detail design to enhance product performance.
2, The body is with heavy-duty steel and with special heat treatment process, better stability and lower noise.
3,The strict and elaborate assembly process to ensure each equipment requirement gets to its standard indicato
We provide more models of woodworking thicknesser planers,The workbench can be lifted by manual or electric. The double sides thicknesser planers are best sales, high speed feeding thicknesser planer, heavy duty thciknesser planer.
IF ANY QUESTIONS, PLS FEEL FREE TO CONTACT WITH ME.

---
