Automatic Filling Line Tomato Sauce Chili Jam Filling Production Line Machine

Product Description

Automatic Filling Line Tomato Sauce Chili Sauce Jam Filling Machine Production Line
Product Description

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	2012-12-4	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000- 4000	5000- 7000	8000- 12000	12000- 15000	16000- 20000	20000- 24000	25000- 30000	35000- 40000
suitable bottle specification(mm)	φ=50-110 H=170 volume=330-2250ml
Washing pressure(kg/cm2 )	2~3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 1 9kw
Overall dimensions (mm)	2400× 1650 ×2500	2600× 1920 ×2550	3100× 2300 ×2800	3800× 2800 ×2900	4600× 2800 ×2900	5450× 3300 ×2900	6500× 4500 ×2900	76800× 66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	15000

Flow chart:
Bottle unscrambler -rinsing-drying-light checking -liquid volumetric filling machine-capping machine-labeling machine-printing--cartoning

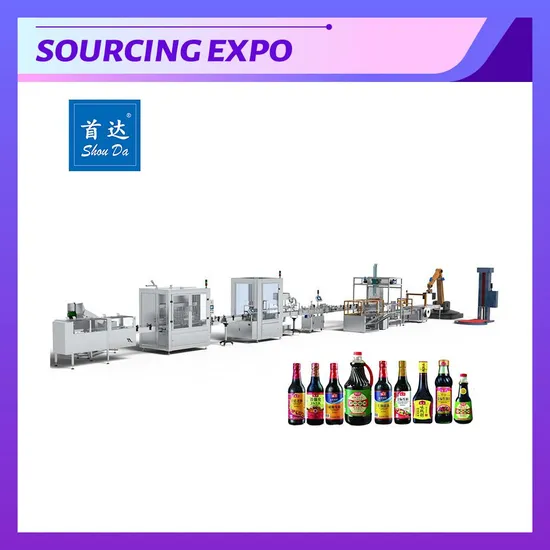

The liquid filling production line is composed of liquid filling machine, automatic capping machine, labeling machine and so on. It is suitable for filling soy sauce, vinegar, vegetable oil and pharmaceutical liquid.Intelligent plc program control system, high efficiency, ensure the accuracy of high-speed filling equipment, suitable for large productionenterprises. Small quantities of automatic production can be configured according to the actual situation.
Our service:
Pre-sale: Accept your inquiries and organize special technical seminars to discuss customer equipment requirements. Provide you with a detailed "equipment plan", including:
1. Equipment samples;
2. The latest technology and technology of related equipment at home and abroad, and the comparison of the advantages and disadvantages of products of related manufacturers;
3. GMP process design, plant water and electricity layout;
4. Process design of mechanical equipment;
5. Related product configuration, spare parts, packaging and after-sales service;
6. Determine the equipment and quote item by item.
On sale:
1. Keep in touch with you at all times, invite customers to visit the company, and supervise production equipment;
2. Prepare the equipment manual, file card and tracking card and other related software, and accept your acceptance at any time;
3. Regularly report the production progress of the equipment to the customer.
After-sales (operate according to the international standard after-sales service)
1. One-year warranty, lifetime service, 24-hour after-sales service website, hotline and fax will be opened for you, and domestic customers will basically arrive at the designated location within 24-72 hours;
2. The spare parts inventory is fully stocked for a long time, and the wearing parts, consumable parts and important accessories are guaranteed to respond to customers in the first time;
3. Regularly return visits to each customer, once a year, and record the equipment file records.
Our company's advantages:
1. The practicability of the equipment: The single machine designed and manufactured by Shouda Company has reliable quality, long service life, low failure rate and convenient maintenance. It can run for more than three to five years without failure under normal use.
2. The operability of the equipment: It is easy to operate, easy to learn and master, suitable for people with different educational levels. At the same time, the equipment is highly standardized and has a strong matching ability, which can easily and quickly replace various parts and components of different specifications.
3. Appearance of the equipment: The appearance design of the equipment is beautiful and generous, in line with ergonomic principles. No matter in terms of material, shape, color, or size ratio, we strive to be more humanized design, so that the appearance and internal quality of the equipment and mechanical performance. , achieve the most perfect unity.
4. Advanced equipment:
A. The equipment realizes automatic unmanned operation from automatic bottle unscrambling, bottle washing, filling, sealing, capping, labeling, unpacking, packing, box packaging and other processes.
B. Successfully solve the instant foaming, dripping and filling accuracy of filling.
C. Successfully solve bottle mouth small-diameter filling and adopt vacuum filling method.
D. Successfully developed leading technology in the industry HCF-134A filling machine.
E. Adopt import high-quality filling pump.
F. The magnetic capping method is adopted, which does not damage the cap and does not loosen.
G. Successfully solve the problems of bottle feeding and out of the bottle, broken bottles and bottle pouring of special-shaped bottles.

---
