Shutter Door Guide Rail Frame Cold Roll Forming Machine

Product Description

Product Description
Shutter door guide rail frame cold roll forming machine
Roller shutter door profile roll forming machine
1.Can roll forming different kinds of shutter door slat with speed 25m/min.
2.Customized according to your shutter door slat profile drawing.
3.After roll forming, here will have a punching system. the hole design will follow your request.
4.The surface of shutter door slat will very smooth and beautiful without any scrtached on surface.
5.On the shutter door slat surface, also can embossing different kind pattern or press logo as your request.
We can follow your requests to make the machine, the profile drawings we displayed here are the model type.
Other profile sizes are also available for us.
Here is the attachment with some pictures of our products that may suit your requirements,please check and select the products that you are interested in.
For other profiles,please send me pictures or drawings.I will send you best offer accordingly.

Rolling shutter doors are connected in series with multi-joint movable doors. In a fixed slideway,
the upper and lower doors are rotated with the reel above the door as the center. Rolling shutters are usually widely used in shops.

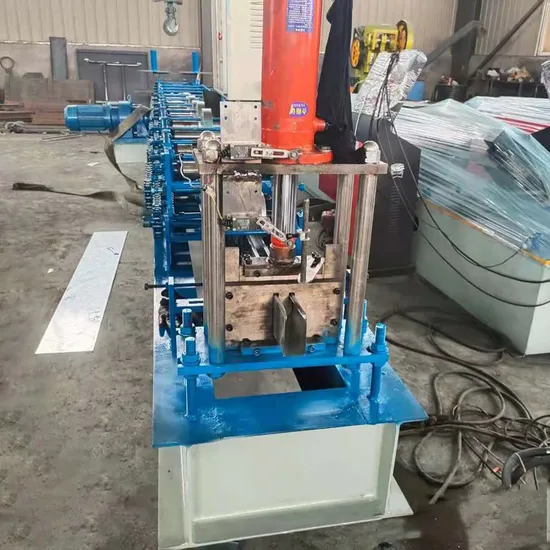

Detailed Photos
Product Parameters
Main parameters of the roll forming machine

Item	Name	Description
1	Decoiler	Capacity:5 tons
2	Material	Steel Coil
3	Thickness	0.3-1.5mm
4	Transmission	Chain/Gear/Gearbox
5	Speed	25m/min
6	Roller	Steel with quenched treatment,chromed on the surface
7	Shaft	steel with tempering treatment
8	Cutting type	Hydraulic cutting
9	Cutting material	Cr12 with quenched treatment Hardness58°-62°
10	Welding	Automatic spot welding
11	Control system	PLC
12	Electric brand	Delta,Siemens
13	Voltage	380V,50HZ,3PH(or as customers' request)

Other product links

Company Profile

Certifications

Packaging & Shipping

FAQ
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.

---
