US$23,200.00-23,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Double-Spindle Processing
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
High-End CNC Machine Tools
Characteristic
High Rigidity and Precision
Specification
1950X14550X1700mm
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
2200.00cm * 1700.00cm * 2130.00cm
Package Gross Weight
2000.000kg
Product Description

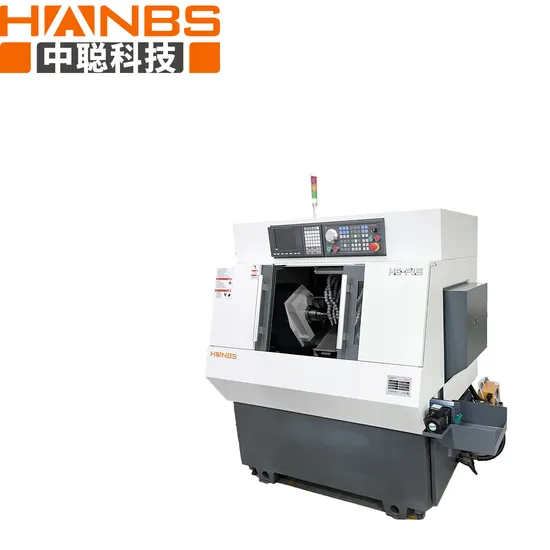

P15 - Swiss Type CNC Lathe of Double Spindle and Double Blade Row Firm Quality
Multi-process Integration:
Capable of integrating various processes (e.g., turning, milling, drilling, tapping) on a single machine, reducing the time and errors associated with transferring workpieces between different machines. High Level of Automation:
Many Swiss-type lathes are equipped with automatic bar feeders, enabling 24/7 continuous production, significantly boosting productivity and output. Advanced control systems and programming features simplify operations and reduce programming and setup time. Reduced Scrap Rate:
High precision and stability result in a lower scrap rate, saving material and costs. Advanced monitoring and feedback systems can detect and adjust machining parameters in real-time, further improving yield. Product Photoes
The dual spindle design allows for simultaneous machining on both the main and sub-spindles, significantly improving production efficiency. One spindle can perform roughing, while the other can handle finishing or secondary operations.
The dual gang tool design allows more tools to be mounted, reducing tool change time and enhancing overall production speed and efficiency.
Capable of integrating various processes (e.g., turning, milling, drilling, tapping) on a single machine, reducing the time and errors associated with transferring workpieces between different machines.
Product Information
Processing parameters | Maximum processing diameter | φ26mm |
Maximum machining length 2.5D | 50mm |
Maximum axial drilling diameter | M10mm |
Maximum axial tapping size | M8 |
Max. spindle speed (short time) | 10000rpm |
Max. back spindle speed (short time) | 12000rpm |
Max. workpiece removal length | 40mm |
Maximum stroke | X1 axis | 375mm |
Z1 axis | 180mm |
X2 axis | 375mm |
Z2 axis | 180mm |
Cutting tool | Size of cutter plate | 390mm |
Maximum number of tools | 8 |
Tool (turning tool) | φ16X16 |
Sleeve | φ25 |
Height from tool plate holder to spindle centre | 45mm |
Collet | Spindle collet | HB26 |
Back spindle chuck | HB26 |
Feed rate | X1/X2 axis feed rate | 15m/min |
Z1/Z2 axis feed speed | 15m/min |
Motor | Spindle drive power | 2.5/3.7KW |
Back-axis drive power | 1.5/2.5KW |
X1 X2 Z1 Z2 power | 1.1KW |
Cutting oil | 0.4KW |
Other | Spindle centre height | 1010mm |
Air pressure flow | 0.7mpa 0.5m3/min |
Main breaker capacity | 40A |
Input power | 5.4KW |
Weight | 2700Kg |
Dimension | 1950X1455X1700mm |
Sample Display
Factory
Certifications
Shipping and Packing
Product Uses
The following are four specific application scenarios of NCN Lathe:
New energy vehicles
medical treatment
Communication accessories
Household appliances
Electronic cigarette
Precision component processing
hydraulic pressure
Pneumatic
FAQ
1. Equipment Cost Q: How much does a dual spindle dual gang Swiss-type CNC lathe cost? A: The price varies depending on the model and specific configuration. Please contact our sales team for detailed pricing. 2. Application Range Q: What types of parts are suitable for a dual spindle dual gang Swiss-type CNC lathe? A: This equipment is suitable for processing complex, high-precision parts, covering multiple industries such as automotive components, aerospace, and medical devices. 3. Operator Training Q: How long does it take to train operators? A: Basic operation training usually takes 1-2 weeks. We also offer ongoing technical support to ensure smooth operation. 4. Equipment Reliability Q: How reliable is the dual spindle dual gang Swiss-type CNC lathe? A: Our equipment is rigorously tested for high reliability and has a low failure rate. It comes with comprehensive after-sales service support. 5. After-Sales Service Q: What after-sales services do you offer? A: We provide equipment installation, operator training, regular maintenance, and emergency repair services. Our technical support team is always ready to assist. 6. Technical Specifications Q: What are the technical specifications of this CNC lathe? A: Technical specifications include machining precision, maximum workpiece size, and more. Please refer to the product manual or contact our technical support team for details. 7. Flexibility and Scalability Q: Can the equipment be upgraded or expanded to meet future needs? A: Yes, the equipment is highly flexible and scalable, and can be upgraded and configured according to future requirements. 8. Production Process Optimization Q: How does the dual spindle dual gang design optimize the existing production process? A: The design allows for simultaneous machining and multitasking, which reduces processing steps, increases machining precision, and improves overall production efficiency. 9. Tool Wear Q: Does simultaneous multi-tool operation increase tool wear? A: Simultaneous multi-tool operation distributes the load among the tools, which can reduce wear on individual tools and extend their lifespan. 10. Energy Consumption Q: What is the energy consumption of this CNC lathe? A: Energy consumption depends on the specific model and operational parameters. Please contact our technical support team for detailed information on energy efficiency. If you have any other questions, please feel free to contact our sales or technical support team.
>>
