US$21,000.00-32,000.00
|
1 Set
(MOQ)
|
Basic Info.
Printing Page
Double Faced
Anilox Roller
Ceramic Anilox Roller
Embossing Structure
Rotary Letterpress
Application
Flexible Packaging Printing
Automatic Grade
Automatic
Max Printing Width
800 mm
Printing Colors
2 - 8 Colors
Max Unwind/Rewind
800mm/1200mm/1500mm
Drive Type
Belt and Gear Type
Printing Lenght
400mm/900mm/1200mm
Ink
Water Base Ink or Solvent Ink
Range of Substrates
Film, Paper, Non Woven, Aluminum Foil
Plate Thickness
Photopolymer Plate 2.84mm or 1.14mm
Transport Package
Stretch Film Package or in Bulk
Specification
6100mm*2300mm*3500mm
Production Capacity
100 Set/Year
Packaging & Delivery
Package Size
500.00cm * 200.00cm * 200.00cm
Package Gross Weight
2100.000kg
Product Description
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you!Product Description
Main Features:
Single Unwind system --Auto tension control --Auto EPC Web guide--Printing Unit--Dry system after printing--Auto tension control--Single Rewind system
Machine Description:
Introduce sentitizationj resin as flexible printing plate,suitable fir printing such packing materials as polyethylene,polypropylene bag, cellophane and roll paper, etc.It is a kind of iddal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
| Main Technical Parameters |
| Model | XH-PF600 | XH-PF800 | XH-PF1000 | XH-PF1200 |
| Max. Web Width | 650mm | 850mm | 1050mm | 1250mm |
| Max. Printing Width | 600mm | 800mm | 1000mm | 1200mm |
| Max. Mechanical Speed | 110m/min |
| Printing color | 2color -8 color |
| Max. Printing Speed | 100m/min |
| Max. Unwind/Rewind | 800mm/1200mm/1500mm |
| Drive Type | Belt and Gear type |
| Printing Length (repeat) | 400mm-900mm-1200mm |
| Ink | Water base ink or solvent ink |
| Range of Substrates | Film, Paper, Nonwoven, Aluminum Foil |
| Plate Thickness | Photopolymer plate 2.84mm or 1.14mm (or to be specified) |

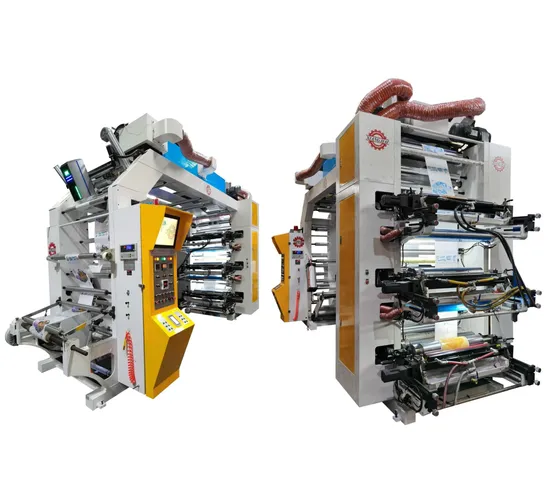

Overall picture
Detailed Photos
Winding unit
Electronic control system
Dry Oven
Camera
Workshop Pictures
Exhibition
Packaging & Shipping
Customer Reviews
FAQ
>>
