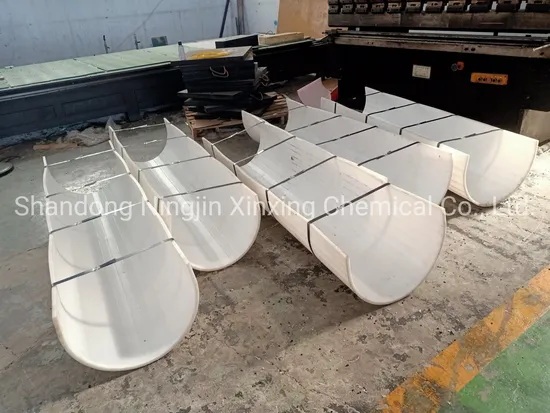

Wear Resistant UHMWPE U Type Tough Plate/Polyethylene Wear Liner

Product Description

Product Description Products Description Screw conveyor trough liners enhance the performance and service life of a screw conveyor. Liners improve efficiency when conveying very free-flowing or fluidizing bulk materials on steep inclines by reducing the clearance between the screw and housing. Liners also provide a low friction surface to reduce adhesion when conveying sticky bulk materials.
Trough liners also act as a bearing surface when intermediate hanger bearings are eliminated in conveyors using close-coupled and clocked or shaftless screws. Most commonly, trough liners provide a wear surface to increase the longevity of the trough or housing.
Selection of the appropriate liner material and attachment method is critical to ensuring a low maintenance screw conveyor.
Advantages Advantage of UHMWPE trough liner
1. Abrasion resistance at the top in plastics, 4 times higher than nylon 66 and PTFE, 6 times higher than carbon steel;
2. The impact strength ranks first among plastics, which is 2 times of PC and 5 times of ABS, and can keep high toughness at liquid nitrogen temperature (-196)
3. Its self-lubrication is approach to that of PTFE, and the coefficient of friction is only 0.07-0.11
4. The impact absorption value is the highest among all plastics, and the sound attenuation effect is very good
5. High chemical stability, in a certain temperature and concentration range can withstand the action of various corrosive media and organic media
6. Strong anti-adhesion ability, second only to PTFE;
7. Completely hygienic and non-toxic, can be used to contact food and medicine
8. Excellent corrosion resistance, low friction coefficient, small specific gravity, good high energy radiation resistance Specification Specification for UHMWPE trough liner

item	value
Place of Origin	SHN
Brand Name	XINXING
Model Number	XX-012
Material	PE
Thickness	6-20mm
Size	customized size
Processing Service	Cutting, Moulding
Application	wear liner sheet wear strip
Product name	shaftless screw conveyor trough liner
MOQ	No limit
Advantage	wear resistant
Shape	trough
Surface	self-lubrication
Customized	Accept OEM
Payment Terms	50% Deposit T/T
Water absorption	Under 0.01%
Feature	Anti-static

Usually size: φ200-1500mm 5mm-20mm 1000-2500mm
External diameter: φ200-1500mm thickness: 5-20mm, length: 1000-2500mm,
All size accept customization, include the flat edge above the half circle part
Color: white, black, others also can be customized it
double color bending sheet( warning the thin layer to protect the equipment)
Application: shaftless screw conveyor
Related products :

Company Profile Our Company
Shandong Ningjin Xinxing Chemical Co.,Ltd
Established in 1989, Xinxing has a history of 35 years in Manufacturing ENGINEERING plastics. Now it is the largest and most professional manufacturer of Engineering plastics, suchas UHMWPE/HDPE Sheets, Boards, Rods, Outrigger Pads, Marine Fender Boards, Ground Protection Mats, Rink Ice Panel and other Machined Processing Parts.
We have advanced Extruding and Compression machines, CNC devices, can make any shape product according to customer's requirements.
Xinxing has 3 factories which passed ISO9001 and ensure all of products compliance with its standard. Our products are used widely in electric power, ports, mining, coal, paper, textile, chemical industries. They are popular in Canada, USA, Russia, Japan, England, Indonesia, Malaysia, India, Italy, South Africa, Chile, Belgium, etc.
Looking forward to your visit!
About us Mainly manufacture Ground mat products. Have rich experience in the line of engineer plastic products for long time. Passed the latest ISO9001:2008 quality system. Located in Qingdao, the third-largest port city in China. Convenient traffic and developed imports and exports. 1. More than 15 years' professional manufacturing enginnering plastic experience with own factory.
Equipment & technology 2.Professional CNC, Press, Cutting Machine, special OEM requirements are available.
Service 3. Passed the latest ISO9001:2008 quality system. Convenient traffic and developed imports and exports.
Packaging & Shipping Product Packing

Packing	Plastic Film, Pallet, Wooden Box, Carton, etc.
Shipping	International Express (DHL, UPS, FEDEX, EMS, etc.), Ocean Transport, Air Transport

Contact us
Thanks for your browse. We're dedicated to supply the best customer service for you! And don't hesitate to contac us!
Angela Fu

---
