Customized 100W Power Amplifier Module for Drone Defense

Product Description

Product Specificatio

Test item				Technical parameters	Unit	Remark
Frequency Range				860-930	MHz	Customized Frequency
Operating Voltage				28	V	28-32V
Maximum Power Output				50±0.5	dBm	100W@≤7A
Gain				45±1	dB	peak-to-peak value
In-band fluctuation				≤2	dB	peak-to-peak value
Spurious Emission	Operating In-band			≤-15dBm/1MHz	dBm	Center Frequency add CW Signal to Maximum Power Output Test
	Operating Out-of-band		9KHz~1GHz	No noise wave above normal base	dBm
			1G~12.75GHz		dBm
Output VSWR				≤1.30		No power up:Standard Grid Output -10dBm
				≤1.30		Power up:Dual Directional Coupler Test
high-low temperature test		Operating Ambient Temperature		-10~+55	ºC	Cold Start
		Gain Stability		±1.5 @-40ºC~+55ºC	dB
		Power Stability		±1 @-40ºC~+55ºC	dB
Power Supply Requirement				≥8A@+28Vdc;		Continuous Wave Output 100W
Power Supply Port				Power Cable:Red positive Black negative		Red positive Black negative
RF Output Connector				SMA		SMA External Screw Base
Warming				Temperature,VSWR,Under Voltage/Power,Over Current

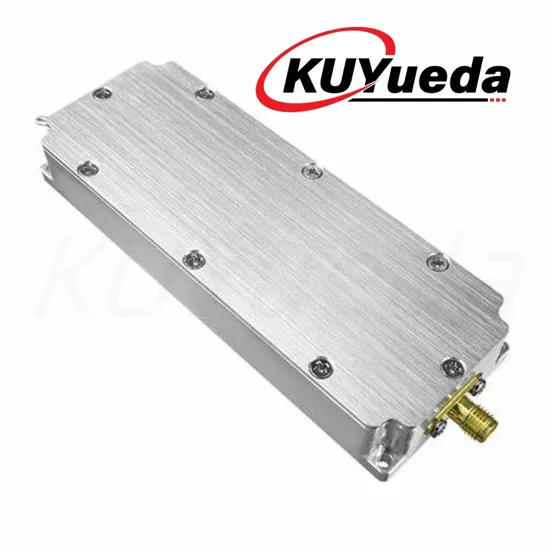

Appearance

Frequency (MHZ)	Power (dBm)	Current (A)	Voltage (V)	Dimensions(mm)	Weight (kg)
400-500	50±1	≤7	32-36	94*170*27	0.8
500-600	50±1	≤7	32-36	94*170*27	0.8
600-700	50±1	≤7	32-36	94*170*27	0.8
720-830	50±1	≤7	32-36	94*170*27	0.8
830-930	50±1	≤7	32-36	94*170*27	0.8
930-1030	50±1	≤7	32-36	94*170*27	0.8
1170-1280	50±1	≤7	32-36	94*170*27	0.8
1550-1620	50±1	≤7	32-36	94*170*27	0.8
2400-2500	50±1	≤7	32-36	94*170*27	0.8
5100-5300	50±1	≤10	32-36	94*170*27	0.8
5700-5900	50±1	≤10	32-36	94*170*27	0.8

---
