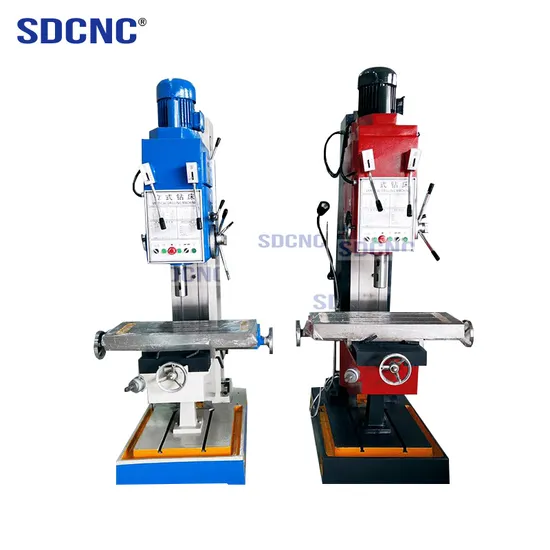

Z5125 Hot Sale Mini Drill Press Household Drilling Machine

Product Description

Hot Sale Mini Drill Press Z5125 Household Drilling Machine Z5125 drilling machines Product description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling,
drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and
deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction
processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range,
high speed operation, novel appearance, convenient maintenance and so on.
Product Parameters

Product main technical specifications:

Specifications	Z5125
Max drilling dia.	25mm
Max feed resistance	9000N
Max. spindle allowable torque	160N.m
Spindle taper	Morse No. 3
Distance from spindle axis to column guide way	280mm
Spindle travel	200mm
Spindle box travel	200mm
Spindle speed	50~2000r/min(9)
The amount of feed(mm/rev)	0.056-1.80mm/r (9)
Working table stroke	310mm
Working table surface size	400×550mm
Distance from spindle nose to table surface	710mm
Main motor power	2.2kw
Cooling pump flow	25L/min
Overall dimension	980*807*2302mm
N/W	1200kg

---
