Basic Info.
Application
Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Food Machinery, Aerospace Industry, Automotive Industry, Advertising Industry, HVAC Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Laser Classification
Free Electron Laser
Laser Technology
Laser Cutting
Positioning Accuracy
0.03mm
Repeat Positioning Accuracy
0.02mm
Cooling Way
Water Cooling
Repeated Positioning Accuracy
0.02mm
Cutting Speed
Depends on The Materials and Its Thickness
Electrical Relay
Omron From Japan
CNC Control
Cypcut From China
Transport Package
Plywood Case After Packed by Wrapping Film
Specification
1500*3000mm
Production Capacity
30 Sets/Month
Product Description

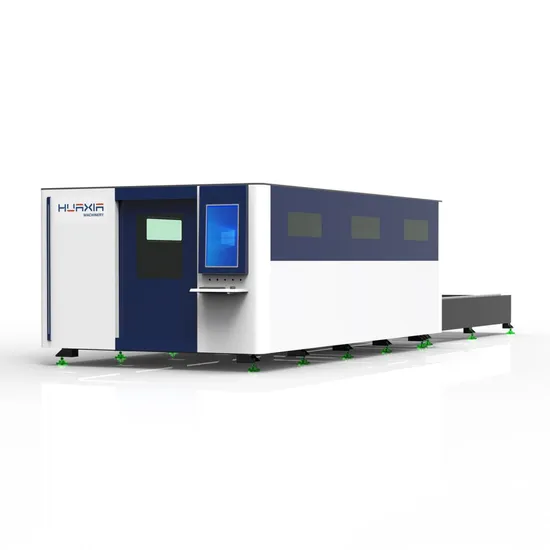

Exchange platform laser cutting machine
Product Name: Exchange Table Laser Cutting Machine
The exchange platform laser cutting machine is professionally applied in the field of metal forming processing such as flat plates. It adopts a dual cutting platform exchange form, which improves work efficiency and adds a closed structure, making operators safer.
Widely used in sheet metal, advertising, kitchenware, bathroom, engineering machinery, shipbuilding and aerospace, automotive parts and other processing industries.
| model | HX-3015 | HX-4015 | HX-6015 | HX-3020 | HX-4020 | HX-6020 |
| Processing dimensions | 3000*1500mm | 4000*1500mm | 6000*1500mm | 3000*2000mm | 4000*2000mm | 6000*2000mm |
| Laser generator power | 1500W/2000W/3000W/6000W/12000W |
| positioning accuracy | ±0.05mm |
| repeatability | ±0.02mm |
| Maximum movement speed | 120m/min |
*The above parameters are experimental data for reference only. For details, please contact relevant personnel for confirmation!
>>
