Good Quality Cheap Price 6060 Metal Molds Engraving Machine for Injection Mould

Product Description

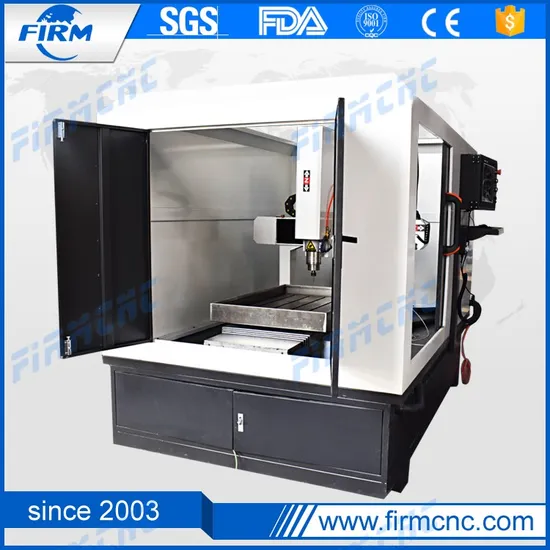

Good quality cheap price 6060 Metal Molds Engraving Machine For Injection Mould
Application:
Can be used for advertisement engraving, advertisement cutting, stone processing, Cutting and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting
Advantage:
1.Whole cast iron structure, the body will not transform for long use.
2. X Y Z use 25mm HIWIN linear square guide rail, it is more stable than the normal round one.
3.X Y Z transmission use high precision ball screw, avoid the spindle suddenly up and down.
4.Gantry fixed,table move design make the machine more precise.
5. Imported control system,higher precision, easier and more convenient to operate.
6. YASKWA Servo motor and driver, break-point memory makes sure accidental workng and avoid the waste of materials.
7.X axis has steel cover,keep the machine clean and long life.
Technical Data:

Performance index	FM6075
X,Y working area	600×750mm
Z working area	200mm
Max travel speed	4m-5.5m/min
Max engraving speed	2m-3m/min
Resolution ratio	0.005mm
Repositioning precision	0.01mm
Max feeding heigh	150mm
Command	G Code *.mmg*.plt
Surroundings for software	windows98/2000/xp
Power	AC220V/60Hz
Main axle power rate	1.5kw Constant Water Cooling Spindle
Spindle speed	0-24000rpm/min
Work Mode	Servo system

Main configuration
Company information
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of cnc router appliance manufacture.
our machine including CNC router machines (CNC wood routers, stone carving machines, metal CNC machines, 3D CNC routers, 3 axis CNC routers,
4 axis CNC routers and 5 axis CNC routers), CNC laser machines (laser marking machines, laser engraving machines,
laser cutting machines and laser welding machines), CNC milling machines, CNC plasma cutting machines,
CNC machining centers, CNC wood turning lathe machines, CNC spare parts and other CNC machines etc.
Packing & Shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Guarantee:
Two years quality guaranty, the machine with main parts(excluding the
consumables) shall be changed free of charge when if any problem during the warranty period.
Service: ( Provide whole life technical support, 24h online )
Before sale:
We would always be here to provide any information you need at the first time, and give professional suggestions according to your real needs for free;
During sale:
We would deal with all the production and shipping affairs, after everything is ready, we would tell you everything goes well here
After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.
