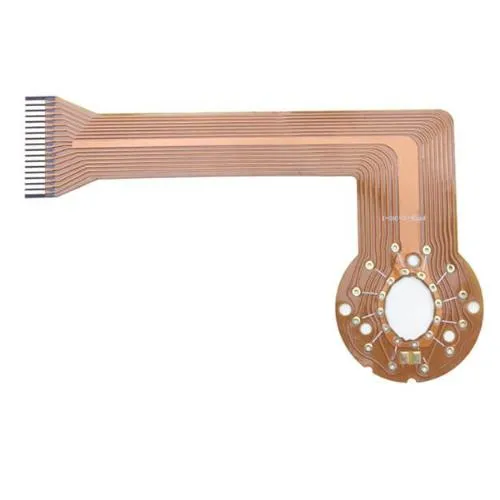

Flexible PCB Circuit Boards is a technology that features circuitry printed on a flexible substrate, allowing the board to bend and conform to various shapes. This flexibility makes it ideal for high-density and high-temperature applications, such as in wearable devices, consumer electronics, and medical equipment. FPCBs are lightweight, thin, and can be designed in single-layer, double-layer, or multi-layer configurations.
As PCB does, Flex mechanically supports and electrically connects electronic components using conductive traces and pads typically created by etching layers of copper laminated on layers of non-conductive foil.
OEM PCB Cable FPC Flexible Strip Supplier Printed Circuit can be constructed as:
Single-sided - conductive traces one side of the film substrateDouble-sided - conductive traces both sides of the film substrateMulti-Layer flex - a laminated "sandwich" of numerous layers with conductive tracesRigid-Flex - a laminated combination of a Copper Flex switch with a rigid FR4 PCB membrane switch.Similar Product Photos
Product Parameters

Fabrication capability
The mechanical drilling	0.1mm
Laser micro hole/blind holes	0.04mm/0.075mm
Minimum trace space/trace width	0.04mm/0.04mm
Normal trace tolerance	±0.015mm
Double side alignment tolerance	±0.05mm
Text alignment tolerance	±0.20mm
Solder resist exposure of tolerance	±0.05mm
The outline die cutting precision (steel)	±0.05mm
Hole to the outline die cutting tolerance (steel)	±0.075mm
Alignment tolerance of attaching stiffener	±0.10mm
multi-layer	8L
rigid-flex boards	8L
VCP copper plating tolerance	±2.0um
VCP hole coopper TP value	150%
impedance width control tolerance	7.50%
The impedance control tolerance	5.00%
Component specification	01005
BGA/Pitch	0.30MM
Environmental requirements	ROHS/H.F

Packaging & Shipping
Foam Protected and packed into cartons
Our Advantages
1. Design Partners
At STC, we accompany you through every phase of the product lifecycle- from initial planning & design to development & implement even though to eventual phrase-out and replacement.Whether you need to design a new control and display system, or fix a challenge with your current one, we can help.
2. Quick-turn Prototyping
Our skilled in-house engineering team provides fully functioning prototypes for significant flexibility in your product design and development.
3. World-class manufacturing competencies
Transition from prototype to mass production is swift and efficient with STC's manufacturing capabilities.
4. Cost Effective
With over two decades in the industry, STC provides cost-effective, integrated membrane switch solutions tailored to your needs. We take all details into account including delivering a full-assembly integration.
5. Excellent Sourcing Capability
We have established an excellent supply chain for a multitude of products allowing us to provide value-added assemblies related to human-machine interfaces. Contact us for more information on our capabilities or request a quote today.

---
