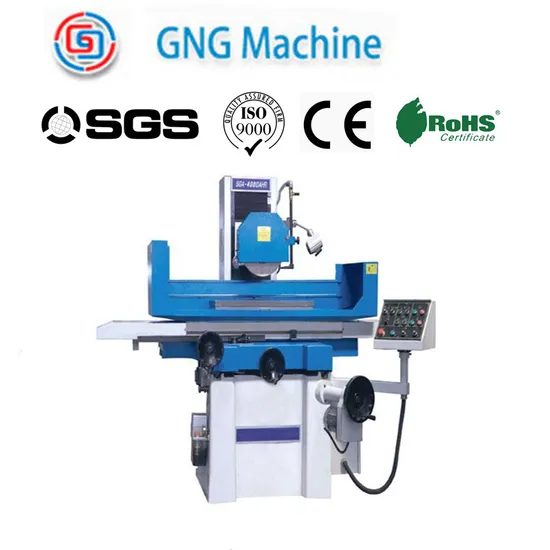

Saddle Moving Surface Lathe\ Metal Grinder Machine

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 340
Max. Grinding Length: 765
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: SGA-3063AH /SGA-3063AHR /SGA-3063AHD
Voltage: 220V
Power(W): 9000W
Dimension(L*W*H): 2350X2220X2150
Weight: 2600kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
Specifications
Max. Width to be ground 340mm
Max. Length to be ground 765mm
Max. Height to be ground 580mm
Table size 305X635mm

SGA saddle moving surface grinder
Item/Model		Unit	SGA-3063AH
			SGA-3063AHR
			SGA-3063AHD
table size(WxL)		mm	305x635
max. longitudinal travel		mm	765
max. cross travel		mm	340
max. distance from spindle center to table		mm	580
electro magnetic chuck size		mm	300x600
speed of table longitudinal movement		m/min	7-23
table transverse movement	auto feed	mm/min	0.1-8
	rapid speed	mm/min	990
	feed of handwheel	mm/div	0.02
wheelhead vertical movement	auto feed	mm	---(H/AH/AHR model) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
	rapid speed	mm/min	---(H/AH model) / 460 (for AHR model) 240(only for AHD model)
	feed of handwheel	mm/div	0.005
grinding wheel	speed	rpm	1450(50Hz),1750(60Hz)
	eize(ODxWxID)	mm	350x40x127
spindle motor		kw	5.5
hydranlic motor		kw	2.2
cooling pump motor		kw	0.125
elecating motor		kw	---(Ah model) 0.25(AHR model) 0.5(AHD model servo motor)
cross feed motor		kw	0.04
max.loading capacity of table(include chuck)		kg	270
total rated power		kw	9
height of machine		mm	1890
floor space(LxW)		mm	2900x2200
Gross weight		kg	2600
package dimensions(LxWxH)		mm	2350x2220x2150

FAQ:
Question 1: what is your target market?
A1: we are now focusing on Europe and North America.
Question 2: what is the biggest advantage over competitors?
A2: we are one of the most powerful suppliers of vibration Multi Tool saw blades in China. We have our own brand, and we can also customize the brand according to the needs of customers.
Question 3: what about payment and delivery time?
A3: delivery time: within 30 days after receiving the advance payment.
Terms of payment: 50% t / T in advance, 50% against copy of B / L (or other)
Question 4: can I have some samples?
A4: Yes, we are honored to provide you with samples for quality inspection.
Q5: how is your factory doing in quality control?
A5: quality first. From the beginning to the end of production, we always attach great importance to quality control. Every product must be carefully inspected before packing and shipment.
Why choose us?
1. GNG has a strong sales team and rich export experience.
2. The brand of GNG has a long history and its products are rich but not monotonous.
3. The products from GNG have long service life, stable quality and stable beating.
4. High temperature Tools pay more attention to production details, and the packaging is firm and exquisite.
5. GNG supports non-standard customization.
6. GNG has its own strong R & D team and strong innovation ability.
7. Our sales response is accurate, timely, professional and long-term after-sales service.

---
