Combined Cleaning Machine. Beans Cleaning Machine. Cleaner.

Product Description

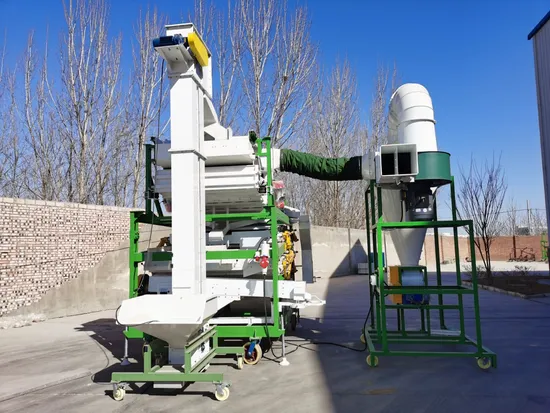

12-14t/h Soybean Cleaning Machine 5CC-15 Combined Cleaner
Working Principle
•The raw grain go to machine by elevator,first go through the vibration grader with two layers for removing the large and small impurities,at the same time the grain evenly scattered on the sieves,front and back air screen part and the outside cyclone system will suck the dust and light impurities out ;
•Then the grain will go to the gravity table which is for removing the small sticks,lighted and moldy grain,half beans etc.;
•All the impurities which removed by gravity table can separate to three different by the two sieves layers in the outlet.
Machine Structure
The Impurities the machine can remove
Machine Specification

Model	5CC-15 Combined Cleaner
Sieve Size	2000mmx1500mm
Power(kw)	Fan motor: 11KW Vibration motors: 0.55X2KW Gravity table Fan Motor:11KW Gravity table vibration motor:2.2KW Elevator:2.2KW Total in:27.5KW
Capacity(t/h)	12-14t/h based on soybean
Weight(kg)	4500
Overall Size L×W×H(mm)	4600*2500*4500mm
Voltage	380V, 50HZ, three phases

---
