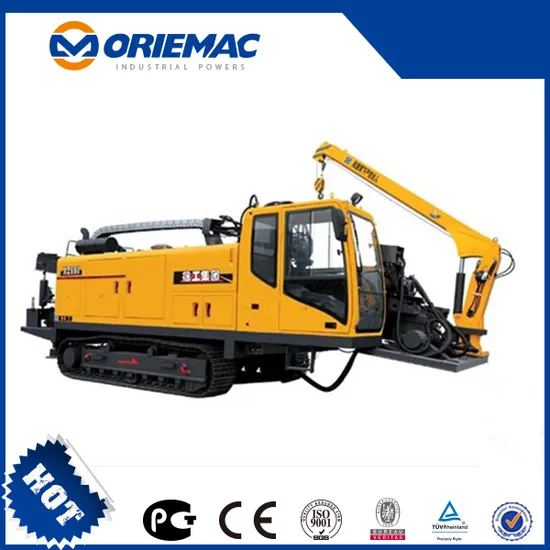

Xz680 Horizontal Directional Drilling Rig HDD for Sale

Product Description

Xz680 Horizontal Directional Drilling Rig for Sale
Product Description 1.Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.
2.Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.
3.High-speed sliding systems, Piston Motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.
4.Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction.
Technical Parameters

Model	XZ680
Engine	CUMMINS
Rated power	250kW
Push-pull	Motor
Max.pullback/thrusting	680/680kN
Spindle torque(max)	27000N.m
Spindle speed	0~100r/min
Travelling speed of power head	20m/min
Backreaming diameter	Φ1000mm
Pipe length(single)	6m
Pipe diameter	Φ107mm
Entry angle	10-18°
Mud flow ratw(max)	600L/min
Mud pressure(max)	100bar
Overall weight	23000kg
Dimension(LxWxH)	11000x2800x3000mm

Product Pictures
