30tons Fully Automatic Continuous Waste Tyre Pyrolysis Plant with Carbon Black Production

Product Description

Company Profile Qingdao Longyuan Baihong Machinery Equipment Co., Ltd. mainly produces fully automatic waste tire pyrolysis plant, waste tire recycling and shredding production line, waste tire shredding and pyrolysising production lines, waste rubber pyrolysis equipment, waste plastic pyrolysis machine, and oil sludge pyrolysis machine
Product Description Continuous Waste Tyre Pyrolysis Plant
1fully continuous operation system,continuously running time 8000hrs anually once start first operation. 2, high degree of automation, automatic feeding, slag and oil discharging. 3. Highly intelligent, equipped with PLC system,unmaned gurd system. 4. Equipped with multiple environmental protection devices, fuel gas treatment can meet the emission standards in different regions such as Europe and Americ 6. Multi-function that can treat waste plastics, waste rubber, waste tires, oil residue, paint residue and other raw materials, and turn waste into treasure, obtain fuel oil and other recyclable products.

No	Specification	Fully continuous waste tyre/plastic/rubber prolysis plant
1	Model	BH-FC30	BH-FC40	BH-FC50	BH-FC60
2	Working type	Fully continuous	Fully continuous	Fully continuous	Fully continuous
3	Raw Material	Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
4	24 hour handling capacity	30T	40T	50T	60T
5	24 hour oil production	14T	18T	22T	27T
6	Heating way	Directly heating	Directly heating	Directly heating	Directly heating
7	Working pressure	Ordinary pressure	Ordinary pressure	Ordinary pressure	Ordinary pressure
8	Cooling way	Water cooling	Water cooling	Water cooling	Water cooling
9	Water consumption	10T/H	12T/H	16T/H	20T/H
10	Noise	≤85DB(A)	≤85DB(A)	≤85DB(A)	≤85DB(A)
11	Total weight	60T	68T	75T	80T
12	Area	47*10*9M	53*10*9M	55*10*9M	58*10*9M

Detailed Photos

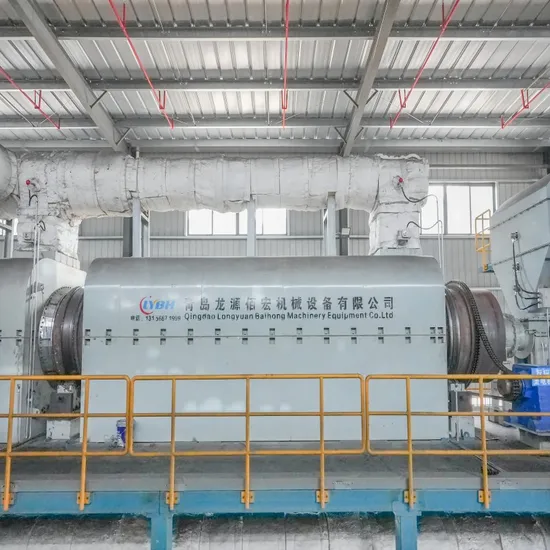

Picture of Reactor
Final Products
Our Advantages 1.Outstanding Features: a. The reactor need preheat at the first when the machine starts producing.
b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
2. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape. c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc. d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.
3. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke b: Smell during operation: Fully enclosed during the operation c: Water pollution: No pollution at all. d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.
Workshop
Certifications
Shipping & Packing
Our customers
Our service
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc. 3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer. 4. For the damage caused by the users, our company provides the parts and accessories with cost price. 5. Our factory supplies the wearing parts with the cost price to clients.

---
