High-Performance Electric and Hybrid Boom Lifts for Efficient Work Jibplus®

Product Description

Pay Attention please!
Our company mainly sells used sanitation trucks! Different prices for different years! Please contact us for details!
Product Description

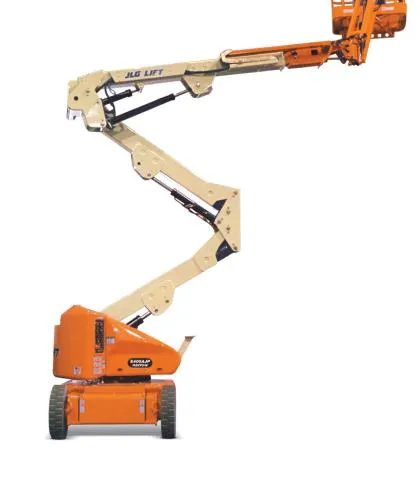

High-Performance Electric and Hybrid Boom Lifts for Efficient Work JibPLUS®
All-weather high performance
The E400 Series offers industry-leading performance while being environmentally friendly. It gives you the reach you need and the versatility to maneuver efficiently in tight spaces.
Main features
Wider range of indoor/outdoor uses
With the automatic traction control system, the two drive wheels work independently, improving traction on uneven ground.
Exceedingly high
Exclusive JibPLUS® small arm option for edge-to-edge horizontal movement over a 180° range.
Free access to confined areas
Narrow models are equipped with a compact chassis with a width of only 1.5 meters, making it easier to get in and out of confined work areas.

E400 Series Specifications

	E400A Narrow	E400AJP Narrow
Platform height	12.19 meters	12.19 meters
Horizontal reach	6.45 meters	6.83 meters
Spanning height	6.55 meters	6.55 meters
Turntable rotation	360° non-continuous	360° non-continuous
Platform Load - Unrestricted Load	227 kg	227 kg
Platform Slewing	180° Hydraulic	180° Hydraulic
Small arm (bending range)	-	144° (+84, -60) Vertical
(JibPLUS®)	-	180° Horizontal
A. Platform Dimensions	0.76 x 1.22 meters	0.76 x 1.22 meters
B. Overall Width	1.5 meters	1.5 meters
C. Swing	10 cm	10 cm
D. Collection Height	1.97 meters	1.97 meters
E. Collection Length	5.51 meters	6.71 meters
F. Wheelbase	2.01 meters	2.01 meters
G. Ground Clearance	13 centimeters	13 centimeters
Weight*	5,942 kg	6,759 kg
Ground Load Capacity**	6.6 kg/cm²	13.0 kg/cm²
Travel speed (2-wheel drive)	7.2 km/h	7.2 km/h
Climbing speed (2-wheel drive)	30%	30%
Maximum Allowable Tilt Angle	3°	3°
Turning radius (inside)	86 cm	86 cm
Turning radius (outside)	3.15 meters	3.15 meters
Tire size/type (front)	22 x 6 x 17.75 non-marking tires	22 x 6 x 17.75 non-marking tires
Tire size/type (rear)	25 x 7 x 12 non-marking tires	25 x 7 x 12 non-marking tires
Electrical system	48 Vdc	48 Vdc
Battery	8 x 6V, 370Ah	8 x 6V, 370Ah
Drive Motor	Dual electric traction AC motors	Dual electric traction AC motors
Brake	Spring Pressurized Multi-Disc	Spring Pressurized Multi-Disc
Hydraulic pump/motor	Permanent magnet motor/gear pump	Permanent magnet motor/gear pump
Hydraulic oil tank 15.14 liters	15.14 Liters	15.14 Liters

*Some options or national standards may result in an increase in overall vehicle weight.
**Ground load capacity applies to standard tires.
When optional equipment is added, the relevant specifications may be changed to comply with the relevant national standards.
SIZES
Working Distance Diagram

FAQ
1. Q: How about the quality of your trucks?
A: Wuhan Ring Valley Environment mainly sells medium and high-end sanitation trucks, no matter the chassis, engine and so on are all belong to the top equipment. Our trucks get ISO 9001: 2008 and CCC, B&V and other related certificates.
2. Q: Is there any advantages of your price?
A: We don't only have new truck but a large selection of used trucks. Different products in different years are available at different prices. We'll be sure to help you find the best vehicle in suitable price.
3. Price term: FOB, CIF.
4. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.
5. Delivery time: 7-20 working days after payment is received.
6. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
If you have any other questions, please feel free to contact us at any time.

---
