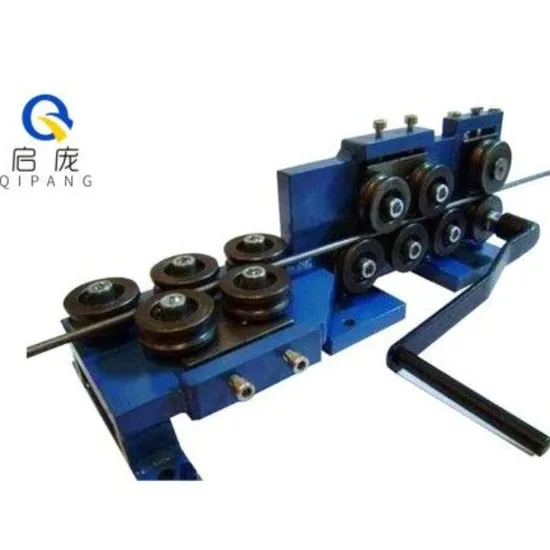

Steel Tube Copper Wire Manual Handle Crank Feeder Steel Wire Straightener Machine

Product Description

Steel Tube Straightening Trolley Wire Straightening Manual Handle Crank Feeder Wire Straighten
Product Description
* Mainly used on drawing machines
* Single and dual plane straightener models
* Eccentric roller open/closing device (lever)
*From 5 ~ 13 rollers per group (5, 7, 9, 11, 13) or (5+5, 7+7, 9+9, 11+11,13+13)
*Roller diameters 13 ~ 80 mm (0.5" ~ 3.15")
*Adjustable rollers on the upper row
*Rollers available for light or heavy duty applications
*Rollers are standard "V" groove profiles but can be provided with "U" grooves according to customer requirements straightening device.
V------- is the groove of the straightening wheel; V, R, U and custom.

Straightener Parameters

	Type		Wire Diameter (Solid)		Roller Diameter (mm)		Roller Qty (pcs)		structure	groove
	A		φ0.05-0.2mm		7		38		quick clamping	V
	B		φ0.2-0.5mm		12		34			V
	C		φ0.5-0.8mm		16		26			V
	D		φ0.8-1.5mm		23		5/18			V
	E		φ1-2mm		23		18			V
	F		φ1.5-3mm		30		5/18			V
	G		φ3-4mm		32		18			V
	H		φ3-4mm		42		14/18		unclamping	V
	I		φ4-7mm		42		14/18/22			V
	J		φ5-8mm		53		14/18/22			V
	Type		Tube/Pipe Diameter (Hollow)		Roller Diameter (mm)		Roller Qty (pcs)		structure	groove
	K		1-3mm		30		18/14		quick clamping	U/R
	L		4-10mm		42		14/18/22		unclamping	U/R
	M		10-20mm		53		14/18/22		unclamping	U/R
I. Different groove types can be customized. II. Quick clamping is straightener with a handle for easy opening and closing the rollers

Detailed Photos
There are two options for traction: rubber wheel and steel wheel


Packaging & Shipping
Other Related Product

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

---
