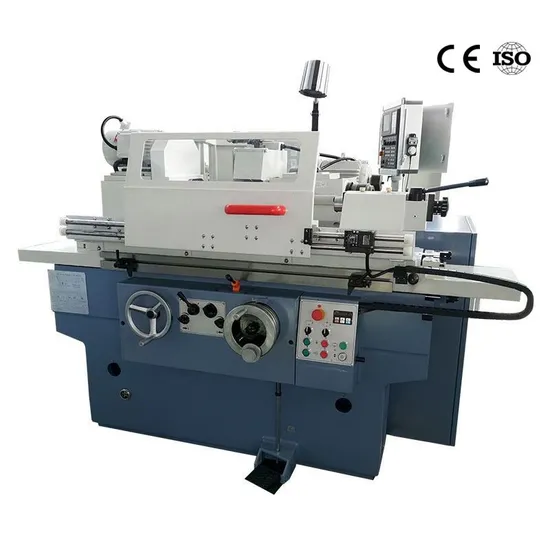

| Specifications | M1420H/FX500 | M1420H/FX800 |
| External grinding diameters | Φ8-200mm | Φ8-200mm |
| Internal grinding diameters | Φ13-100mm | Φ13-100mm |
| Center height | 135mm | 135mm |
| Workhead spindle speed | 50HZ: 25-380r/min stepless | 50HZ: 25-380r/min stepless |
| Max travel of table | 650mm | 950mm |
| Hydraulic traverse speeds | 0.1-4m/min | 0.1-4m/min |
| Max travel of worktable | 50kg | 50kg |
| Grinding length external/internal | 500/125mm | 500/125mm |
| Swivel range of worktable | -14° | -10° |
| Max peripheral speed of grinding wheel | 38m/s | 38m/s |
| External wheel size | MaxΦ400x50xΦ203mm
MinΦ280x50xΦ203mm | MaxΦ400x50xΦ203mm
MinΦ280x50xΦ203mm |
| Internal wheel spindle rotating-speed | 16000r/min | 16000r/min |
| Workhead and tailstock center | NO.4 Morse | NO.4 Morse |
| Machine motor power | 5.625kw | 5.625kw |
| Overall dimensions(LxWxH) | 2500x1600x1500mm | 3000x1600x1500mm |
| Machine weight | 2500kg | 3000kg |
