Busbar Automatic Inspection Line Busbar Machine Busway Testing Machine

Product Description

Automatic inspection machine for busway system / High voltage test machine for busduct / Insulation tester for busbar trunking system

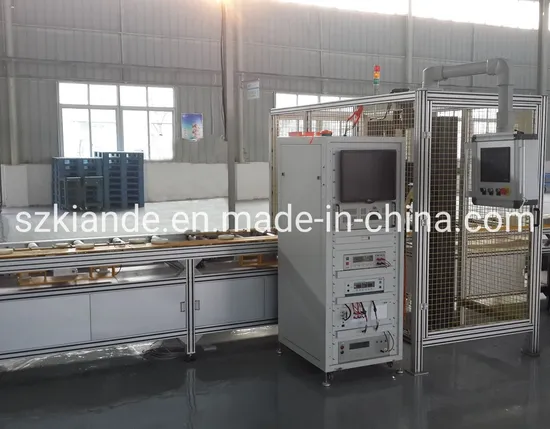

Automatic inspection machine is composed of three parts, feeding positioning station, inspection station and discharge station. When the busbar enters the feeding position, the control system will select the right testing fixture to start testing from the information identified by bar code or previous assembly line. Three tests will be performed including HV withstanding test, insulation resistance test and grounding test. After test is finished, testing report will be generated. This report can be saved, printed on site and recorded remotely. Its format can be set according to customer's requirements. Automatic inspection machine is mainly used for batch inspecting on the straight busbar. Elbow busbar type shall be tested on manual inspection machine.
Specification of busbar inspection machine

No.	Parameters
Model	KD-JCX/NC-E/H-6
Busbar Height	100mm~650mm
Busbar Length	1200mm~6000mm
Busbar Type	Straight length type
Position Type	Unilateral / Middle
Working Efficiency	2 min/piece(testing time is adjustable.)
Servo Nos	2 axis( Z axis/X axis)
Vision System	Phase error judgment( optional)
Printing System	Bar code printing/ Report printing( optional)
High Voltage Withstanding Test	0~5000V
Insulation Test	1~1000V
Grounding Test	0~25A
Power	380~415VAC 50~60Hz 5kW
Equipment Dimension	L12000mm*W1200mm*H1900mm

Clarification:
1) The equipment can satisfy the busbar production of the following busbar specification.
2) Current ratings: 630A~2500A(Single layer busbar)
3) Phase and wire: 3P3W, 3P4W, 3P5W.
4) Busbar length suited to be inspected: 1.5m to 6m
5) Equipment working efficiency: 3min/piece
6) Equipment length: 12m
Supply range and service
1) One set of automatic patching machine and one set of automatic inspection instrument.
2) One set of busbar automatic inspection electrical control system.
3) One set of technical Data including installation, commissioning, use, maintenance and operation.
4) Equipment operation manuals.
5) Equipment electrical schematics.

---
