Armoured Control Cable/Screened Flexible Control Cable

US$0.10-30.00 100 Meters (MOQ)

Basic Info.

Model NO.
armoured control cable/screened flexible control c
Current
DC & AC
Insulation Material
XLPE
Sheath Material
PVC
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
ISO, CCC, CE, RoHS, VDE
Model
Control Cable
Brand
Chan Qing Teng
Product Name
Armoured Control Cable/Screened Flexible Control C
Rated Voltage
450/750 V,300/500V/,600/1000V
Conductor
Copper
Insulation
XLPE/PVC
Sheath
PVC/PE
Core Number
1 2 3 4 5 6 7 8 9 10
Color Color
Red, Yellow, Blue, Green or as Your Requirement
Origine
Shandong, China
Packaging
Wooden Drum
Shipping
3-10 Working Days
Transport Package
Packed in Roll
Specification
100 meter packed in one roll
Trademark
Luxing
Origin
Shandong, China
HS Code
8544492100
Production Capacity
100000000/ Month

Product Description

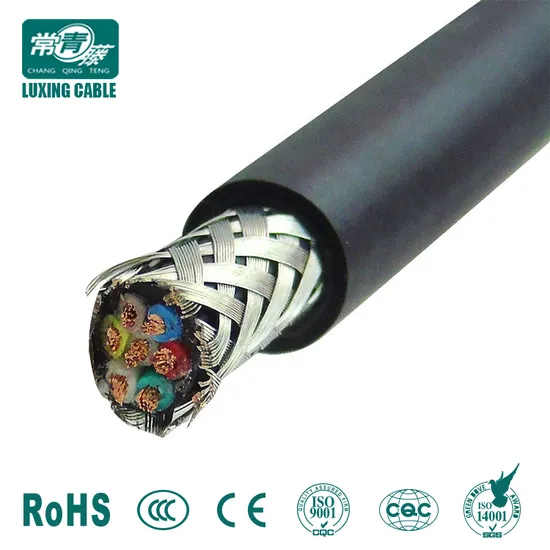

Armoured control cable/screened flexible control cable
Application
For system connection wire of control, signal, protection or measuring with rated voltage up to and including 450/750V.
Type, designation and application
Type Designation Main applications
KVV/KYJV Copper conductor PVC/XLPE insulated PVC sheathed control cable For fixed-laying indoors, in cable duct or conduit
KVVP/KYJVP Copper conductor XLPE/PVC insulated PVC sheathed braid screened control cable For fixed-laying indoors, in cable duct or conduit upon screen requirement
KVVP2/KYJVP2 Copper conductor PVC/XLPE insulated PVC sheathed copper tape screened control cable For fixed-laying indoors, in cable duct or conduit upon screen requirement
KVV22/KYJV22 Copper conductor PVC/XLPE insulated PVC sheathed steel tape armored control cable For fixed-laying indoors, in cable duct direct-buried, able to bear larger mechanical forces
KVV32/KYJV32 Copper conductor PVC/XLPE insulated PVC sheathed fine steel wire armored control cable For fixed-laying indoors, in cable duct, conduit or well, able to bear larger mechanical forces
KVVR/KYJVR Copper conductor PVC/XLPE insulated PVC sheathed control flexible cable For laying indoors upon moveable requirement
KVVRP/KYJVRP Copper conductor PVC/XLPE insulated PVC sheathed braid screened control flexible cable For laying indoors upon moveable and screen requirement

Type range
Type Rated voltage V Nominal cross-section of conductor(mm2)
0.5 0.75 1.0 1.5 2.5 4 6 10
No. of cores
KVV/KYJV
KVVP/KYJVP		 450/750 2~61 2~14 2~10
KVVP2/KYJVP2 4~61 4~14 4~10
KVV22/KYJV22 7~61 4~61 4~14 4~10
KVV32/KYJV32 19~61 7~61 4~14 4~10
KVVR/KYJVR 4~61
KVVRP/KYJVRP 4~61 4~48

Calculated Data
No.×Nom. cross-section mm2 Largest diameter of cables Calculated weight of cables(kg/km)
KVV KVVP KVVP2 KVV22 KVV32 KVVR KVVRP KVV KVVP KVVP2 KVV22 KVV32 KVVR KVVRP
2×0.75 8.0 9.3 - - - - - 72 114 - - - - -
2×1.0 8.3 9.6 - - - - - 81 124 - - - - -
2×1.5 9.3 10.6 - - - - - 109 157 - - - - -
2×2.5 10.8 11.9 - - - - - 154 201 - - - - -
2×4 11.8 13.9 - - - - - 187 346 - - - - -
2×6 13.0 15.0 - - - - - 241 351 - - - - -
2×10 16.3 17.8 - - - - - 391 502 - - - - -
2×0.75 8.3 9.6 - - - - - 87 130 - - - - -
3×1.0 8.8 10.0 - - - - - 98 143 - - - - -
3×1.5 9.9 11.1 - - - - - 127 177 - - - - -
3×2.5 11.3 12.6 - - - - - 181 238 - - - - -
3×4 12.5 14.5 - - - - - 234 347 - - - - -
3×6 13.3 15.8 - - - - - 329 470 - - - - -
3×10 17.3 18.7 - - - - - 511 632 - - - - -
4×0.5 - - - - - 8.7 9.9 153 - - - 96 141
4×0.75 9.1 10.3 9.2 - - 9.3 10.5 104 163 144 - - 114 164
4×1.0 9.5 10.7 9.6 - - 9.6 10.8 119 203 153 - - 123 179
4×1.5 10.7 11.9 10.7 - - 10.9 12.1 156 330 192 - - 158 210
4×2.5 12.4 14.4 12.9 - - 12.5 14.6 226 436 276 - - 228 336
4×4 14.3 15.7 14.0 16.5 19.6 - - 315 530 367 505 856 - -
4×6 15.6 17.0 15.2 17.8 20.2 - - 413 768 467 619 995 - -
4×10 18.9 20.8 19.8 22.4 25.8 - - 644 - 728 947 1584 - -
5×0.5 - - - - - 9.3 10.5 - 162 - - 108 164
5×0.75 9.8 11.0 9.9 - - 10.0 11.2 119 193 152 - - 122 174
5×1.0 10.2 11.4 10.3 - - 10.4 11.6 142 248 174 - - 148 208
5×1.5 11.6 12.8 12.23 - - 11.9 13.1 190 390 226 - - 200 267
5×2.5 14.1 15.5 13.91 - - 14.3 15.7 290 501 325 - - 296 399
5×3 15.5 16.9 15.18 17.6 20.8 - - 383 626 427 586 962 - -
5×6 17.0 18.4 16.55 19.5 22.2 - - 505 567 737 1130 - -
5×10 21.8 22.6 22.2 24.1 27.6 - - 830 986 924 1125 1814 - -
7×0.5 - - - - - 10.0 11.2 - - - - - 118 164
7×0.75 10.5 11.7 10.5 13.7 - 10.8 12.0 146 202 178 317 - 149 218
7×1.0 11.0 12.2 11.0 14.2 - 11.2 12.4 169 216 209 354 - 172 224
7×1.5 12.5 14.4 13.1 15.6 17.6 12.8 14.7 225 330 289 425 712 233 338
7×2.5 15.3 16.7 14.9 17.5 20.6 15.4 16.8 353 471 398 554 923 359 482
7×4 16.8 18.2 16.3 18.9 22.0 - - 473 601 527 701 1108 - -
7×6 18.5 19.9 17.9 20.9 24.3 - - 652 789 717 900 1484 - -
7×10 23.6 24.2 24.1 28.0 29.5 - - 1082 1216 1145 1397 2140 - -
8×0.5 - - - - - 10.5 11.7 - - - - - 126 174
8×0.75 11.0 12.2 11.7 14.3 - 11.3 12.5 166 217 206 344 - 174 229
8×1.0 11.6 13.5 12.2 14.8 - 11.8 13.6 193 243 230 378 - 196 254
8×1.5 13.9 15.3 13.7 16.3 19.4 14.2 15.6 277 387 312 467 811 285 393
8×2.5 16.1 17.5 15.7 18.3 21.4 16.3 17.7 405 524 486 614 1002 412 536
8×4 17.8 19.6 17.7 20.2 23.7 - - 545 681 589 789 1354 - -
8×6 20.1 21.5 19.3 21.9 25.4 - - 748 898 792 989 160 - -
8×10 25.1 26.1 25.5 27.5 30.9 - - 1210 1386 1236 1542 2332 - -
10×0.5 - - - - - 12.2 14.1 - - - - - 147 194
10×0.75 12.9 15.0 13.5 16.0 - 13.3 15.3 205 300 214 - - 216 310
10×1.0 14.3 15.7 14.1 16.7 - 14.5 15.9 256 368 300 449 - 269 386
10×1.5 16.3 17.7 16.0 18.5 21.6 16.7 18.1 340 456 387 558 957 352 472
10×2.5 19.1 20.5 18.9 21.5 24.9 19.3 20.7 500 636 572 753 1362 516 647
10×4 22.1 22.9 21.4 23.3 26.8 - - 721 863 787 956 1618 - -
10×6 24.4 25.4 23.4 25.4 28.8 - - 956 1108 992 1203 1931 - -
10×10 29.9 30.9 30.3 33.0 37.9 - - 1523 1648 1590 - 3160 - -
12×0.5 - - - - - 12.6 14.4 - - - - - 176 224
12×0.75 13.9 15.3 13.8 16.4 - 14.3 15.7 240 345 301 - - 252 356
12×1.0 14.7 16.1 14.5 17.0 - 14.9 16.3 289 396 312 485 - 295 403
12×1.5 16.7 18.1 16.4 19.0 22.1 17.2 18.6 386 498 423 609 1018 394 512
12×2.5 19.6 21.5 19.5 22.0 25.5 20.5 21.7 572 703 654 829 1455 581 712
12×4 22.8 23.6 22.0 24.0 27.4 - - 825 970 887 1061 1744 - -
12×6 25.2 26.2 24.1 26.1 29.5 - - 1102 1276 1189 1356 2100 - -
14×0.5 - - - - - 13.2 15.2 - - - - - 198 246
14×0.75 14.6 16.0 14.4 17.0 - 15.0 16.4 285 396 312 - - 296 408
14×1.0 15.4 16.8 15.1 17.7 - 15.6 17.0 321 443 398 530 - 333 457
14×1.5 17.5 18.9 17.2 20.2 23.6 18.0 19.7 432 550 492 684 1248 445 564
14×2.5 21.2 22.5 20.4 22.9 26.0 21.5 22.7 670 800 721 913 1563 683 814
14×4 23.9 24.7 23.0 25.0 28.5 - - 929 1078 973 1171 1888 - -
14×6 26.4 27.4 25.3 27.2 30.7 - - 1246 1300 1203 1508 2290 - -
16×0.5 - - - - - 14.5 15.9 - - - - - 246 291
16×0.75 15.3 16.7 15.1 17.6 - 15.7 17.1 312 423 400 - - 323 441
16×1.0 16.1 17.5 15.8 18.4 - 16.4 17.8 359 469 389 576 - 373 487
16×1.5 18.4 19.8 18.0 21.0 24.5 18.9 20.3 485 596 489 745 1337 496 614
16×2.5 22.8 23.6 22.0 23.9 27.4 23.0 23.8 775 880 789 1005 1687 787 892
19×0.5 - - - - - 15.2 16.6 - - - - - 287 346
19×0.75 16.0 17.4 15.8 18.3 21.4 16.5 17.9 347 456 386 - 637 359 473
19×1.0 16.9 18.3 16.6 19.5 22.2 17.2 18.6 408 517 413 645 1039 421 529
19×1.5 19.4 21.2 19.3 21.9 25.4 20.5 21.7 533 674 612 824 1442 564 696
19×2.5 23.9 24.7 23.0 25.0 28.5 24.2 25.0 1053 1053 986 1119 1834 898 1069
24×0.5 - - - - - 17.4 18.8 - - - - - 327 396
24×0.75 18.4 19.8 18.0 21.0 24.5 19.0 20.4 400 523 476 - 1021 414 536
24×1.0 19.5 21.4 19.4 22.0 25.5 19.8 21.7 510 634 580 776 1401 516 656
24×1.5 23.5 24.3 22.9 24.8 28.3 24.2 25.0 744 866 792 1001 1709 759 884
24×2.5 27.7 28.7 26.6 28.5 32.0 28.1 29.1 1110 1258 1179 1376 2199 1128 1279
27×0.5 - - - - - 17.8 19.2 - - - - - 359 489
27×0.75 18.8 20.2 18.8 21.4 24.8 19.4 20.8 476 600 503 - 1180 492 634
27×1.0 20.5 21.8 19.8 22.4 25.8 20.8 22.1 578 713 612 821 1458 596 737
27×1.5 24.0 24.8 23.3 25.3 28.7 24.6 25.4 807 957 886 1063 1788 824 983
27×2.5 28.3 29.3 27.1 29.1 32.5 28.6 29.6 1209 1359 1286 1480 2316 1225 1378
30×0.5 - - - - - 18.4 19.8 - - - - - 396 554
30×0.75 19.4 21.3 19.4 22.0 25.4 20.6 21.9 523 635 600 - 1240 539 658
30×1.0 21.6 22.4 20.5 23.0 26.5 22.0 22.8 651 786 725 883 1536 667 799
30×1.5 24.8 25.8 24.1 26.0 29.5 25.5 26.5 882 1093 891 1150 1893 897 1123
30×2.5 29.3 30.3 28.1 30.8 35.6 29.7 30.7 1327 1473 1384 1808 2851 1343 1496
37×0.5 - - - - - 19.7 21.5 - - - - - 470 594
37×0.75 21.9 22.7 21.4 23.3 26.8 22.5 23.3 600 704 588 - 1398 616 731
37×1.0 23.2 24.0 22.5 24.4 27.9 23.5 24.3 771 912 887 1013 1710 792 945
37×1.5 26.4 27.6 25.8 27.7 31.2 27.4 28.4 1050 1196 1105 1331 2127 1072 1224
37×2.5 31.5 33.2 30.8 33.5 37.6 31.9 33.6 1591 1741 1681 2139 3213 1612 1768
44×0.5 - - - - - 22.4 23.8 - - - - - 540 620
44×0.75 24.3 25.3 23.7 25.6 29.1 25.1 26.1 745 887 809 - 1576 764 908
44×1.0 25.8 27.0 24.9 26.9 30.4 26.2 27.2 915 1035 987 1184 1952 938 1076
44×1.5 29.7 30.7 28.7 32.1 36.2 30.6 31.6 1251 1394 1315 1817 2838 1274 1421
44×2.5 36.0 37.2 34.3 37.5 41.2 36.4 37.6 1950 2100 2018 2532 3699 1974 2128
48×0.5 - - - - - 23.3 24.1 - - - - - 598 686
48×0.75 24.7 25.7 24.0 26.0 29.4 25.4 26.4 832 927 887 - 1789 854 958
48×1.0 26.2 27.2 25.3 27.3 30.7 26.6 27.6 967 1097 1023 1236 2018 986 1118
48×1.5 30.2 31.2 29.2 32.6 36.7 31.1 32.1 1326 1487 1397 1890 2935 1352 1508
48×2.5 36.5 37.2 34.9 38.1 41.6 37.0 38.2 2070 2147 2097 2662 3843 2094 2178
52×0.5 - - - - - 23.9 24.7 - - - - - 634 763
52×0.75 25.3 26.3 24.6 26.6 30.0 26.1 27.1 898 1009 935 1920 912 1034
52×1.0 26.9 27.9 26.0 27.9 31.4 27.3 28.3 1035 1187 1113 1305 2109 1056 1214
52×1.5 31.0 32.6 30.6 33.3 36.3 31.9 - 1420 1578 1493 1997 3068 1449 -
52×2.5 37.5 39.2 35.8 39.0 41.5 38.0 - 222 2396 2298 2819 4032 2249 -
61×0.5 - - - - - 25.2 26.2 - - - - - 689 812
61×0.75 26.8 27.8 26.0 27.9 31.4 27.6 28.6 967 1087 1025 - 2084 991 1109
61×1.0 28.4 29.4 27.4 29.3 32.8 28.8 29.8 1186 1316 1256 1470 2314 1209 1348
61×1.5 33.5 34.7 32.3 35.0 39.1 34.4 - 1680 1837 1745 2241 3366 1698 -
61×2.5 40.2 41.4 37.9 41.1 43.6 40.7 - 2599 2749 2599 3175 4461 2612 -
Luxing Factory : our production base
Luxing Cable Mainly Produce
300/500V 450/750V electrical wire AAC conductor
600/1000V PVC insulated cable AAAC conductor
600/1000V XLPE insulated cable ACSR conductor
1.8/3KV to 26/35KV power cable OPGW
Armored underground cable ABC cable
Control cable and instrumentation cables Rubber cable

Strict Quality Test
Packaging & Shipping
