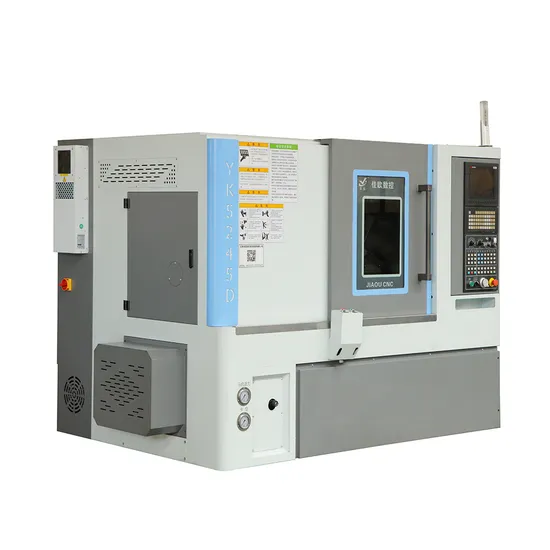

52 Bar Dia Turret Tool Lathe CNC Machine with Indexing Chuck

Product Description

Product Description

Machine Structure & Construction:
Industrial-grade 30° slant bed architecture
Monolithic cast iron base for superior stability
Thermally balanced frame design
Precision-ground guideways
Optimized chip and coolant management system
Heavy-duty rigid construction for vibration dampening
Chuck & Workholding System:
Dual-option chuck configuration:
Hydraulic power chuck system
Power indexing chuck capability
Quick workpiece clamping mechanism
High-precision centering system
Stable workholding for accurate machining
Tool System Configuration:
Static turret tool holding system
Multiple tool mounting positions
Quick-change tool interface
Precision tool positioning system
Rigid tool clamping mechanism
Premium Component Integration:
Japanese-engineered ball screws
German precision linear guideways
Taiwan-manufactured high-speed bearings
International standard servo systems
Industrial-grade motion control components
Performance Capabilities:
High-precision turning operations
Superior surface finish quality
Excellent positioning accuracy
Enhanced repeatability
Stable continuous operation
Minimal thermal deviation
Application Advantages:
Ideal for precision components
Suitable for small-batch production
Perfect for automotive parts
Optimal for aerospace components
Excellence in medical device manufacturing
Specialized for precision mechanical parts
Technical Excellence:
Advanced CNC control system
Real-time process monitoring
Precision measurement capability
Automated operation functions
Smart manufacturing ready
Industry 4.0 compatible
Product Parameters

Machining Capacity	Swing over bed	mm	ф500
	Swing over carriage	mm	ф220
	Max machining length	mm	400
	Max turning dia	mm	ф350
	Max bar material size	mm	ф52
	Interference diameter	mm	ф170
Spindle	Spindle nose	-	A2-6
	Spindle bore	mm	ф67
	Taper of spindle inner hole		Metric 70(1:20)
	Spindle motor power	kw	11
	Chuck size	inch	8
	Spindle speed	rpm	200-3000
Axes specs	Axes travel	mm	X200 Z450
	Axes fast moving	m/min	X20 Z22
	Repeatable positioning accuracy	mm	X0.003 Z0.005
Tool type	Turret	-	12-100-380
	Tool holder size	mm	25*25/ф32
Other specs	Drive type	kw	2.2
	Programming		ISO standard
	Cooling motor	w	370
Measurements	Dimension	mm	aournd 2800*1650*1800
	Weight	kg	around 2800

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.

---
