Hot Selling Aluminum Panel for Data Center

Product Description

Product Details

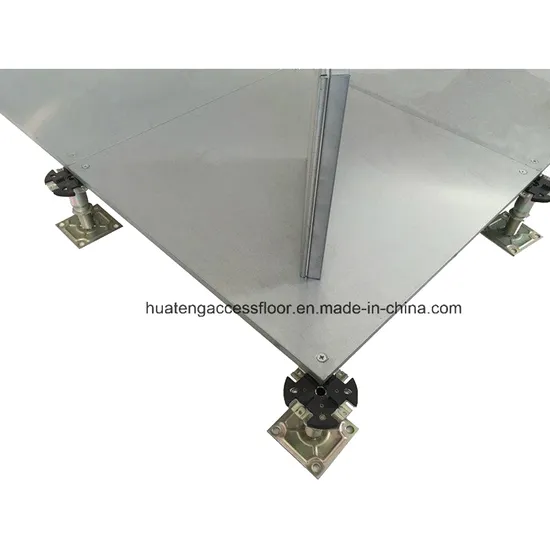

Steel Peforated Panel
HT Perforated Panel is specially designed for ventilation through below floor space up to the equipments, applied for under floor air conditioning system. Perforated panel is of accurate size and thickness, interchangeable with steel access floor panels. The ventiltation rate of panel can be from 20% to 65%.
Characteristics
Available with top surface adjustable dampers
Interchangeable with woodcore panel/calcium sulphate panel
Provide sperior cooling for managing heat loads
Same size and finish as the solid panel
Application
Computer room, communication room, exchange equipment room and places required air circulation, dust-proof and anti-static environment.

Type	Hole diameter	Ventilation Rate	Concentrated load Deflection=2mm			Impact	Ultimate	Uniform
	Φmm/pcs		lb	N	Kg	Load(N)	Load(N)	Load(N/m)
AS450-TFA	Φ8x1536	22%	≥450	≥1960	≥200	450	58820	12500
AS800-TFB	Φ16x576	32%	≥800	≥3550	≥360	670	10700	17000
AS800-TFC	Φ22x400	42%
AS1000-TFD	Φ10x918	20%	≥1000	≥4450	≥450	670	13350	23000
AS1000-TFE	Φ(52x18)x128	45%
Size	600x600mm
Flatness	≤0.6mm
Vertical	≤0.3mm

Our Advantages
Application Scenario
Calcium Sulphate Access Panel Application
High-grade rooms, such as banks, telecommunication centers, smart offices and computer rooms. Areas of high humidity. Company Profile Welcome to Changzhou Huateng Access Floor Co., Ltd. Huateng has specialized in Raised Access Floor since 1993. With continuous innovation and development, we are now covering 80, 000 square meters with more than 200 employees.Huateng has been certificated in both ISO9001 and ISO14001 systems. For steel raised floor production, we developed an digital automatic production line, from steel cutting to welding. Huateng raised access floors are widely used in offices, computer rooms, data centers, clean rooms and other public places. Since the birth of the company, we've begun to develop our oversea markets. We continue to export various types of our products around the world such as steel cementatious raised floor, woodcore raised floor, calcium sulphate raised floor, encapsulated panels, air flow panels and understructures."Whatever You Load, HT Panels Can Hold". Following this philosophy, Huateng has earned the trust of customers from Asia, North America, Middle East, USA and Europe. Huateng diligently strives for cooperation with both domestic and international friends.
Packaging & Shipping
Certifications

---
